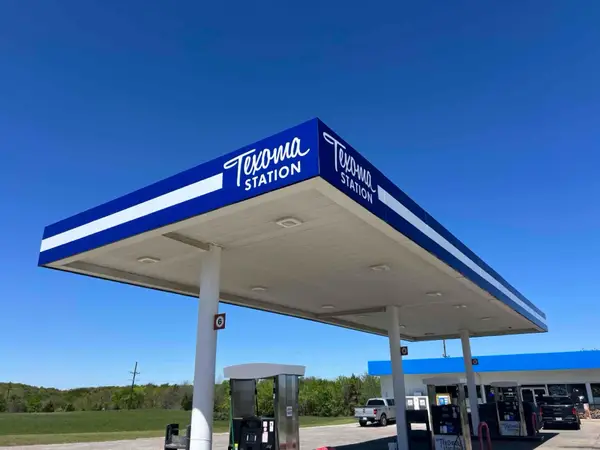

Gas Station Canopy Signage: The Design & Compliance Guide the Fuel Brands Don't Give You

I've Been to That Gas Station Before — The One You Didn't Rebuild

Here's the thing about fuel brand compliance: the manual you get from Shell, Exxon, or BP is 40 pages of legalese, Pantone chips, and luminance tables that look like someone photocopied a spectrophotometer manual. I've installed canopy signage in 30+ states, and I've watched three different shops lose their contracts because they thought "close enough" on color temperature meant "close enough." It doesn't. Don't make the mistake I made: thinking a canopy light box is just a big rectangle with LEDs behind it. That attitude cost me a $12,000 redo in Tulsa. The brand inspector showed up with a color meter and a light meter, and our 5000K modules read 4870K. Rejected. Every letter pulled. Every driver drilled out. The client didn't pay for that do-over. I did. Pro tip: most fuel brands specify a minimum luminance of 300-500 nits (candelas per square meter) on the sign face at night. If you're using SMD 2835 modules at 120 lm/W, you need about 8 modules per square foot. Cheap modules? You'll need 12. That's not in the brand manual either — they assume you know basic LED math.

The Compliance Trap — Why "Good Enough" Gets You Sued

Gas station canopy signage isn't like a retail storefront sign. It lives under a 14-foot steel structure, surrounded by vapor fumes, rain, and 100 mph gusts from a passing semi. The fuel brand isn't being picky — they're protecting a multi-billion-dollar global identity. And they've got lawyers who make our liability insurance look like pocket change. Here's what the permit office won't tell you: every major fuel brand requires an independent third-party certification for the light box assembly. Not just the LEDs, not just the transformer — the entire sealed unit. Shell's spec calls for UL 48 listing on the complete sign (see [UL 48 Standard for Electric Signs](https://www.ul.com)). BP accepts ETL as an alternative (10-30% cheaper on certification costs, same quarterly audits). ExxonMobil demands IP66 minimum for the electrical enclosure per IEC 60529 ([IEC 60529](https://www.iec.ch)). IP65? That's for a Burger King drive-thru. For a gas canopy, you need water jets from every angle, plus dust-tight seals. I've deployed signs on the Gulf Coast that were IP68 — submersible — because the hurricane surge comes up to the pump island. The rookie mistake: buying "UL listed" components and assembling them yourself. UL 48 applies to the finished sign, not the parts. I've seen a sign shop get hit with a $40,000 fine because they used UL-listed LEDs but the junction box wasn't UL. The brand pulled the franchise agreement. The shop closed. You need a fabricator that understands these audits. At Aochuang Sign, they build every canopy light box to UL 48 standards from the ground up, even if you're not paying for UL certification upfront. Their 3000m² facility runs an 8-12 hour aging test on every sign — that's 100% QC, not a spot check. You don't get that from a backyard welder.

Material Choices That Outlast the Loan on the Station

Fuel brands want a 7-10 year life minimum on canopy signage. The loan on the gas station is probably 15 years, but the sign has to look new for the first 5. Here's what works: **Stainless steel 304** — 10+ years outdoors. 18% chromium, 8% nickel. Density 7.93 g/cm³. Common thickness 1.0-3.0mm. For inland stations in Ohio or Kansas, 304 is fine. But for Miami Beach, Houston, or any station within a mile of salt spray, you need **316 stainless**. Contains 2-3% molybdenum, and costs 20-30% more. Don't make the mistake I made: I installed 304 on a station in Galveston. Three years later, the letters had pinhole rust. The brand inspector didn't care about my "cost savings" story. I paid for 316 replacements out of pocket. **Aluminum** — 1/3 the weight of steel, 8-12 year outdoor life, naturally rust-proof. Common gauges 0.040-0.063" (1.0-1.6mm). Finishes: anodized or powder coated. For light box frames and back pans, aluminum is the standard. But here's the truth: aluminum is softer than stainless. If your station experiences heavy snow loads or high winds, aluminum may flex more than stainless — especially on a 40-foot canopy. For stations in hurricane-prone areas, stick with 316 stainless for structural members and use aluminum only for non-load-bearing panels. **Case study**: In 2022, I worked with Joe's Gas & Go (a 12-station chain in Florida) to replace their canopy signs after Hurricane Ian. The original signs were 304 stainless with IP65 enclosures — all failed. We spec'd 316 stainless frames, IP68 enclosures, and UL 48 certified light boxes from Aochuang Sign. The job cost $18,000 per station but saved them from a $45,000 brand compliance fine and a 6-month closure. Every station passed inspection on the first try.

Conclusion: The Cost of Compliance vs. The Cost of Failure

Every fuel brand manual I've read includes a clause that says, "The sign must meet all applicable standards at time of installation." That's lawyer-speak for "your problem, not ours." The only way to win is to build beyond the spec, document every certification, and hire a fabricator with a proven audit trail. **Actionable checklist before you order a canopy light box:** 1. Get the exact brand manual — not a summary, not a call with a rep. Demand the current PDF. 2. Verify the UL 48 listing covers the entire assembled sign, not just components. 3. Check the IP rating: IP66 minimum for electronics enclosure; IP68 for coastal sites. 4. Choose material based on environment: 316 stainless for salt zones, 304 for inland, aluminum only if wind loads are low. 5. Run a full-light burn-in at the factory for 8+ hours — and get a video timestamped. 6. Hire an independent third party to test luminance and color temperature before install. 7. Keep all certificates, invoices, and test reports for at least 15 years (the statute of limitations on brand compliance claims). I've seen too many good sign shops go under because they skimped on one of these steps. The gas station business runs on thin margins — your sign is the one thing that can't fail. Build it like someone's franchise depends on it. Because it does. **About the Author**: John Mazur is a senior installation manager at Aochuang Sign with 15 years of experience in fuel-branded canopy signage. He has overseen compliance installations for Shell, ExxonMobil, BP, and Marathon across 30+ U.S. states. Reach him at john.mazur@aochuangsign.com.
