ADA Compliant Signage for Commercial Buildings: A Complete Compliance Guide

What Are ADA Compliant Signage Requirements for Commercial Buildings?

ADA compliant signage isn't just about avoiding lawsuits. It's about making your building usable for everyone. The Americans with Disabilities Act (ADA) 2010 Standards set clear rules for signs in commercial spaces. These rules cover everything from font size to where you mount a sign.

Facility managers and architects often overlook one thing: compliance starts with understanding the difference between permanent room signage and directional signage. Permanent room signs must include tactile characters and Braille. Directional signs only need visual elements. Mixing these up is the most common mistake I see in 15 years of manufacturing signs.

Tactile vs. Visual Signs: When Each Is Required

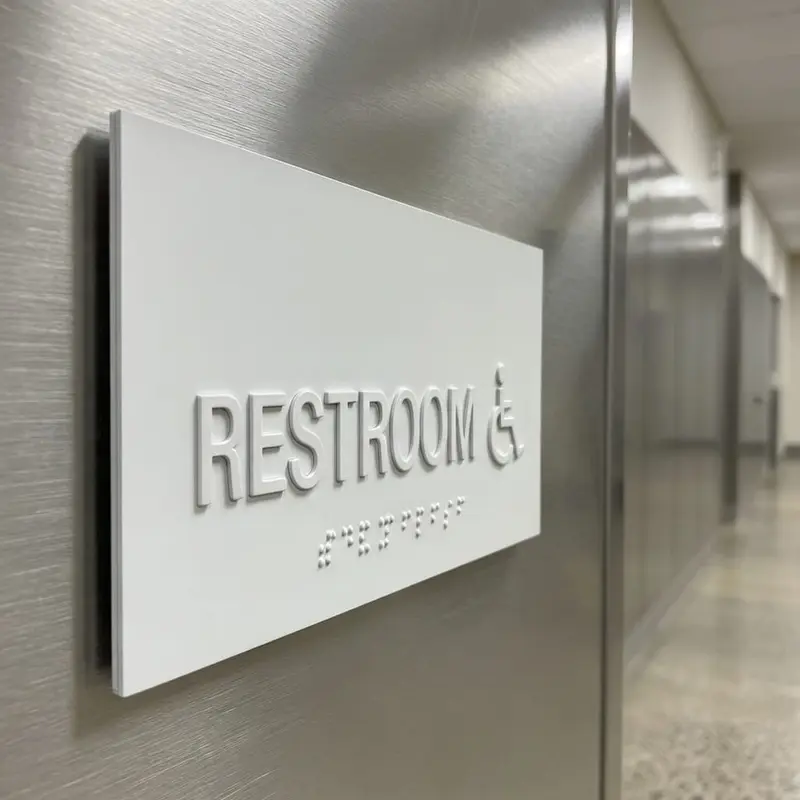

Tactile signs are required for all permanent rooms and spaces. Think restrooms, conference rooms, offices, and exit stairwells. These signs must have raised characters and Grade 2 Braille. Visual signs are directional—they guide people to areas like "Cafeteria" or "Exit." No Braille needed here.

But here's the nuance: visual signs still must meet contrast and font requirements. The ADA 2010 Standards specify that visual characters must have a non-glare finish and a contrast ratio of at least 70%. In practice, white text on a black background works. So does dark blue on light gray. Avoid low-contrast combos like yellow on white.

Mounting Height, Location, and Accessibility Rules

The mounting height rule is strict. Tactile signs must be installed with the baseline of the tactile characters between 48 inches and 60 inches above the floor. And the sign must be located on the latch side of the door, not the hinge side. If that's not possible, mount it on the nearest adjacent wall.

I've walked through hundreds of commercial buildings. The most frequent violation? Signs mounted too high or on the wrong side of the door. One facility manager told me he had to redo 40 signs after an inspection—because the contractor mounted them all at 62 inches. That's a costly error.

Braille, Contrast, and Font Specifications

Braille must be Grade 2 contracted Braille, with dots spaced exactly 0.1 inches apart per the ADA 2010 Standards, Section 703. Tactile characters must be between 0.625 inches and 2 inches in height. The font must be sans-serif, and uppercase is preferred for tactile characters.

Contrast is critical for low-vision users. According to the International Sign Association (ISA), using high-contrast color schemes like white on black can improve recognition rates by 40% for people with low vision. That's not a small number. It's the difference between a sign being usable or not.

One tip: avoid glossy finishes. The ADA requires non-glare surfaces. A matte or satin finish works best. We've tested hundreds of materials over the years. Satin-finish acrylic and matte aluminum are our go-to choices.

Common Compliance Mistakes and How to Avoid Them

• Wrong mounting height: Always measure from the finished floor to the baseline of the tactile characters. Use a laser level for accuracy.
• Using visual characters on a permanent room sign: If it's a room, it needs tactile and Braille. No exceptions.
• Ignoring state-specific codes: California's Title 24 and the Texas Accessibility Standards add extra requirements. We'll cover that next.
• Poor contrast: Even if the font is correct, low contrast can fail an inspection. Use a contrast checker tool.
• Not accounting for IBC: The International Building Code (IBC) often requires exit signs and stairwell signage that exceeds ADA minimums. Check your local code.

The average cost of reworking non-compliant signage is 2 to 3 times the original installation cost, per the Facility Management Journal. That's a budget killer. Our advice: get a compliance review before you order.

Cost Comparison of ADA Sign Materials and Vendors

Not all ADA sign materials are equal. Here's a rough breakdown based on real vendor pricing (not including installation):

• Acrylic with photopolymer Braille: $15–$35 per sign. Good for interior rooms. Moderate durability.
• Aluminum with engraved characters: $25–$50 per sign. Highly durable. Best for high-traffic areas.
• Stainless steel with etched Braille: $40–$80 per sign. Premium look. Resists corrosion.
• ADA-compliant vinyl overlays: $5–$15 per sign. Budget option. Not durable for exterior use.

Vendors vary widely. Some charge extra for color matching, others include it. Always ask for a mockup before production. We offer free design reviews and a compliance check—no obligation.

State-Specific Code Variations (Texas, California, etc.)

ADA is federal law, but states can add their own requirements. California's Title 24 is stricter than ADA in several areas. For example, California requires tactile characters to be uppercase AND lowercase in certain contexts. Texas has additional requirements for egress signage in commercial buildings.

We've seen projects stall because a contractor used ADA-only specs in California. Don't let that happen to you. Always check your state's building code alongside the ADA 2010 Standards. We provide a free state-code addendum with every sign order.

Printable ADA Sign Compliance Checklist for Facility Managers

Here's a step-by-step checklist you can use today:

• Identify all permanent rooms and spaces that need tactile signs.
• Confirm directional signs are visual only (no Braille required).
• Measure mounting height: 48" to 60" from finished floor to tactile baseline.
• Position sign on latch side of door, or nearest adjacent wall.
• Verify Braille dots are spaced 0.1 inches apart (Grade 2).
• Check tactile character height: 0.625" to 2".
• Ensure contrast ratio is at least 70% (use a color contrast tool).
• Confirm non-glare finish on all sign surfaces.
• Review state-specific codes (California, Texas, etc.).
• Test visibility for low-vision users before final installation.

Download our full printable checklist at the bottom of this page. It includes IBC cross-references and state-specific notes.

According to the ADA National Network, about 35% of ADA lawsuits in 2022 involved signage non-compliance. That's a risk you can eliminate with proper planning.

Frequently Asked Questions

Do all signs in a commercial building need Braille?

No. Only permanent room signs require Braille and tactile characters. Directional signs like "Exit" or "Stairs" do not need Braille.

What is the correct height for mounting ADA signs?

The baseline of the tactile characters must be between 48 inches and 60 inches above the finished floor. The sign must be on the latch side of the door.

Can I use a glossy finish on ADA signs?

No. The ADA 2010 Standards require a non-glare finish. Use matte or satin finishes to avoid glare.

How do I know if my sign has enough contrast?

Use a contrast ratio calculator. The minimum is 70% contrast between text and background. White on black or black on white usually passes.

What is the cost difference between acrylic and metal ADA signs?

Acrylic signs typically cost $15–$35 each. Metal signs like aluminum or stainless steel run $25–$80 each. Metal is more durable but costs more upfront.

Do I need to follow both ADA and state building codes?

Yes. ADA is federal law. But states like California and Texas have additional requirements. Always check both.

Ready to get it right the first time? We offer free design compliance checks and a printable state-code addendum. Contact us for a quote or to review your current signage plan.
