You ever pull a sign off a wall and find the aluminum frame corroded to powder where it touched the stainless steel? I have. More times than I can count. That's galvanic corrosion – and it's the reason a perfectly good sign can turn into a liability inside of two years.
What the Hell Is Galvanic Corrosion?
It's simple electrochemistry. Dissimilar metals in contact with an electrolyte (rain, salt air, even humidity) create a battery. One metal becomes the anode and corrodes faster than it would alone. The other metal, the cathode, sits there smiling while its partner rots.
Here's what nobody tells you: the voltage difference tells the story. Aluminum against stainless 304? That's about a 0.9V difference in the galvanic series. Enough to eat through an aluminum return in 18 months if you're near the coast. I've seen it.
The ugly truth is most spec writers don't even think about this until a sign falls off its mounting. By then you're replacing the whole thing – and explaining to a customer why their "$5,000 investment" looks like junk.

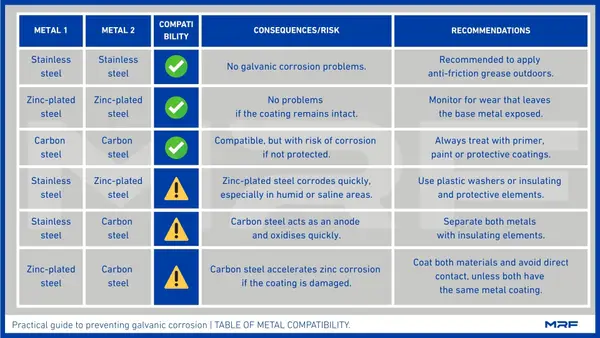

Metal Pairings That Bite You in the Ass
Every sign shop uses a mix of metals.
Stainless steel letters for the face, aluminum for the trim cap, maybe a carbon steel frame for the backing. That's a three-metal disaster waiting to happen.
Here's the pairing I see most often: stainless 304 (cathode) bolted direct to aluminum (anode). The aluminum goes first. In a dry climate you might get 5-6 years. In coastal Miami? Twelve months before pitting starts.
Add copper or brass into the mix – like those decorative plaques – and you've got a real problem. Copper and aluminum together are brutal. Aluminum becomes the sacrificial anode fast. That's why I never let copper and aluminum touch. Ever.
If you're ordering
front-lit channel letters with aluminum returns and a stainless face, you need isolation between those metals. Most cheap fabricators skip it. They weld the stainless retainer directly onto the aluminum base. That's a short circuit. Literally.
Stopping the Bleed: What Actually Works
Look, there's no magic coating that fixes everything. But I've been doing this 27 years, and I've learned what holds up.
First rule: never let bare dissimilar metals touch. Use nylon washers, rubber gaskets, or plastic standoffs between them. I've had good luck with high-density polyethylene (HDPE) spacers – cheap, easy to cut, handles UV.
Second rule: seal every seam. The production process on our shop floor uses neutral silicone on every joint. Not the acidic stuff that attacks aluminum. Neutral silicone. You get a watertight barrier that breaks the electrolyte path.
Third rule: choose your finishes carefully. A good powder coat on both metals adds a non-conductive layer. But if the coating chips – and it will, where bolts rub – you've got a tiny anode-cathode pair in that scratch. That's why I always specify at least two coats on
stainless steel letters that mate with aluminum.
If you're near salt water, spring for 316 stainless instead of 304. It's got molybdenum, which makes it more noble – less acceleration of the other metal's corrosion. Yes, you'll pay 20-30% more. But replacing a sign every three years costs more.
Installation Tricks That Save Your Ass
You can design a sign perfectly in the shop and then screw it up on the wall. I've seen it go wrong: a guy bolts an aluminum sign to stainless studs using steel washers. Galvanic trifecta.
Here's what you do: use stainless steel fasteners everywhere – and isolate them from aluminum with neoprene washers. Or use plastic anchors if the load allows.
Keep drainage in mind. Water that sits inside a sign frame is the electrolyte that starts the battery. We put weep holes at the bottom of every channel letter back, so moisture drains out. And we slope the mounting brackets so water runs off, not into the joints.
One more thing: if you're mixing painted aluminum and bare stainless, the aluminum's paint is your best friend – until it chips. Touch up every scratch within 24 hours. We use a matching automotive-grade urethane. A $5 can of touch-up can save a $500 repair.
Brutal Honesty About Certifications and Claims
Every supplier selling "corrosion-resistant" signs claims their process is best. Here's my test: ask for the galvanic corrosion test data. Watch them sweat.
IP65 means your sign survives rain. It does NOT mean your sign survives a salt spray environment. For coastal work, I want IP66 or better – and that includes sealed wire entry points where corrosion spreads.
Quickest way to spot a lazy fabricator: they use aluminum screws in stainless brackets. That's an anode-cathode pair an inch from your sign face. Replace those screws with nylon or stainless, properly isolated.
CE marking costs money. Most factories in China slap a CE sticker on without the testing. If you're importing
front-lit channel letters from overseas, demand to see the certificate with today's date – or pay for an independent inspection. I've opened crates where the aluminum trim had started corroding on the boat because the factory skipped the isolation step.
FAQ – Answers from Someone Who's Done the Work
Can I bolt aluminum directly to stainless if I paint the contact points?
No. Paint chips. Use a plastic or rubber barrier washer. I've watched sign painters swear their epoxy would hold – and then scratch it during installation. Now there's a battery with a tiny gap. Corrosion follows.
Is powder coating enough to prevent galvanic corrosion?
Only if the coating is intact on every surface that touches the other metal. That includes the back side of the letters, the mounting stud threads, the inside of the trim cap. Most shops powder coat the visible face and leave the rest bare. That's where it fails. Specify full encapsulation.
What about acrylic letters on metal backs?
Acrylic is non-conductive, so it won't cause galvanic corrosion. But the metal back still contacts the mounting surface. If you're putting an aluminum backplate on a stainless wall bracket, use isolation there too. Don't let the acrylic fool you – the problem's behind it.
How long before I see problems?
In a dry climate with no salt? Maybe five years. In a coastal zone with rain? Eighteen months to first pitting. I replaced a sign in Haikou last year – fourteen months after install. The aluminum frame was chalky white where it touched the stainless face. The customer was pissed. The fabricator blamed the environment. Truth is, they skipped the isolation gasket.
Here's the bottom line: galvanic corrosion is 100% preventable. It's not a mystery. It's a spec – written into the production process before the laser cuts a single letter. Your supplier either understands this or they don't. And if they don't, you'll be replacing signs on your dime. I've got the gray hair to prove it.
