Laser Cut vs Water Jet vs Plasma Cut Metal Letters: The Real Breakdown

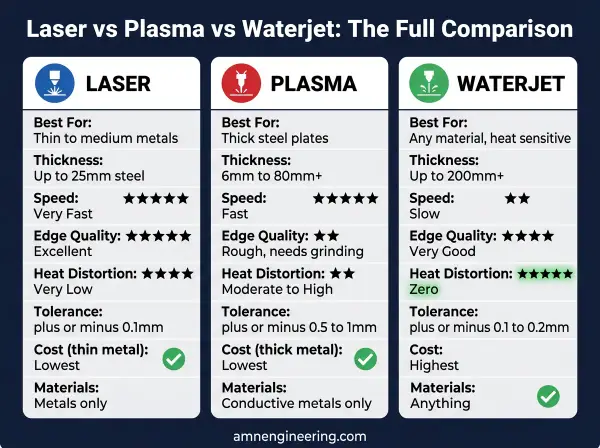

The three cutting methods in one paragraph each

Laser cutting uses a focused beam of light. It vaporizes metal along a narrow line. On a good day with a fiber laser, you're holding ±0.1mm — that's your tolerance floor. That's what we run in our own shop. We use it for stainless steel letters up to about 6mm thick. Past that, the laser starts to struggle, and the edge starts to look like a bad shave.

Water jet isn't cutting — it's eroding. A high-pressure stream of water mixed with abrasive garnet blasts through the metal. No heat. That's its only real superpower. No heat affected zone, no discolored edge, no warping. It handles stainless steel up to 100mm thick, plus aluminum, brass, stone, whatever. But it's slow, and the edge has a slight taper — entry is sharp, exit gets a little washout. For thin lettering, that taper doesn't matter. For thick, it does.

Plasma? That's a big arc flashlight with gas flowing through it. It melts metal and blasts it away. Fast, cheap for thick plate, but the cut edge looks like you chewed it. Heat affected zone is enormous — the edge gets hardened, discolored, and needs serious grinding. Plasma is for structural steel, not for a brass letter on a boutique hotel.

Here's what nobody tells you: edge quality is the whole game

Your sign letters get seen from three feet away. A customer runs their hand across the letter. If the edge is rough, pitted, or has a burnt oxide layer, you lose the job. Laser cutting gives you a clean, square, consistent edge. Water jet gives you a matte, sandblasted-looking edge — fine for painted letters, not for polished stainless. Plasma gives you an edge that looks like a dog's breakfast without significant abrasive finishing.

Think about it in terms of labor. A laser-cut stainless letter edge might take 30 seconds to deburr. A plasma-cut edge takes 10 minutes per letter to grind flat, blend, and polish. If your sign shop charges $80/hour shop labor, that's the difference between profitable and stupid.

And don't forget the taper on water jet. On a 3mm stainless letter, the difference between the top edge and bottom edge is maybe 0.1mm. You won't see it on a channel letter. But on a 12mm solid letter, that taper becomes visible. The face won't be perfectly square with the back. The only fix is an extra milling pass, which destroys the cost advantage.

Thickness decides which method you actually need

For sign letters — not building names on a curtain wall, but actual individual letters — you're almost always in the 1.0mm to 3.0mm range. Our standard stainless steel letters are 1.0-3.0mm. In that range, a laser is unbeatable. It's fast, precise, and gets into tight corners without leaving a radius. Water jet can cut the same thickness, but it's slower and costs more per linear meter. Plasma should be laughed out of the room.

When does it change? Above 6mm, laser cutting gets iffy. You start seeing striations on the cut face, and the kerf gets wider. That's when we send the job out for water jet. An 8mm or 10mm solid aluminum letter for a monument sign — water jet is the right call. No heat distortion, and the slab stays dead flat. We've done aluminum letters that way. Also for titanium or copper, water jet handles it without burning. Plasma is only acceptable when your letter is 12mm+, the face doesn't matter, and you're going to sandblast or cover it with a weld anyway.

I've seen this go wrong: the "water jet is better" myth

Some importers buy water jet because they assume "more expensive process = premium product." Nonsense. Water jet produces a slightly dull, matte edge. For a front-lit channel letter, that edge gets hidden inside the trim. For a back-lit halo letter with 8mm flange, the edge is visible. If you want a mirror edge, laser is the better starting point. Water jet gives you a frosted look. That's a fact, not an opinion.

The other thing I've seen go wrong: someone specs plasma because they're making 100 large letters out of 6mm steel and want to save money. Then the grinding and filling costs twice the fabrication. The sign shop eats the labor. The buyer gets a delayed shipment. And the letters look like they came out of a metal shredder in bright sun. Plasma has a place: structural supports, mounting plates, brackets. Not fine lettering.

The cost and speed reality

Let's talk real numbers. Laser cutting is cheap — pennies per inch on thin metal. For a 1.2mm stainless steel letter, the cutting cost is almost noise compared to welding, wiring, and finishing. Water jet runs about 3-5x the cost of laser per linear inch on thin material. Plasma is faster than both on thick plate, but then you pay for grinding. The total cost to produce a finished letter usually adds up: laser < water jet < plasma (once you include labor).

Speed: Laser is the fastest on any metal under 6mm. Water jet is the slowest — it moves at less than one tenth the speed of laser on thin material. Plasma is fastest above 12mm. For a typical sign job of 20 letters, laser cutting takes seconds per letter. Water jet takes minutes per letter. Your lead time doesn't suffer if we're only cutting the letter faces, because we use laser in-house. But if you're waiting on a water jet shop, add 3-5 days for a slot in their queue.

Here's another honest number. Our factory quotes front-lit channel letters at $20-80 per letter. Most US retail installed jobs run $200-700 per letter. The cutting method isn't the biggest chunk of that — it's the wiring, welding, face bending, and installation. So don't chase a cheaper cutting process. Chase a factory that doesn't hide its real costs.

What we can and can't do at our factory

Here's the honest part. In our Lu'an facility, we operate a fiber laser cutting table with ±0.1mm tolerance. We do not run a water jet or plasma table in-house. We're a sign manufacturer, not a steel service center. That's on purpose — for 95% of the sign letters we produce, laser is the right tool. For the other 5%, like 10mm thick solid letters or huge 2-meter stainless letters that need a water jet to avoid warping, we subcontract to a local precision workshop. They've been cutting for us for eight years. We inspect every batch.

So don't ask us if our signs are laser cut. They are. Ask us about thickness and edge finish. We'll tell you straight: up to 6mm, we laser. Above that, we'll either recommend a different material, or we'll farm out the cutting to a water jet shop we trust, then handle all the fabrication, welding, and finishing back at our plant. That's the difference between a factory and a middleman.

What we can't do? We can't make a 50mm thick solid brass letter as a standard product. If you need huge dimensional pieces, we'll quote it honestly, with a realistic lead time. We can do stainless steel letters in any finish, but if you want a polished mirror edge on a 20mm thick plate, you're paying a machinist for hours of hand work. We'd rather tell you that upfront than collect your money and deliver trash.

The ugly truth is: most buyers don't inspect the cut edge

They look at a photo, a proof, a glowing LED test. Nobody zooms into the edge. So factories get away with rough plasma-cut letters that they grind just enough to paint over. Six months later, the paint chips off the sharp edges, rust appears along the bottom, and the sign looks like it's ten years old. That's not the cutting method's fault — it's the factory's greed.

When you're comparing quotes, ask for a sample cut in the actual material and thickness. Not a photo. A physical sample. Cut one letter from our factory and tell me you can tell the difference between laser and water jet from ten feet away. You can't. But from three feet, with side light, you'll see it. Laser gives you a crisp definition. Water jet gives you a soft, uniform matte. Plasma gives you visible drag lines if they didn't grind it thoroughly.

I've been doing this for 16 years. I've burned my hands on hot acrylic, argued with LED suppliers, and watched more than one import container land with letters that looked like they were cut with a dull chisel. The cutting method matters, but the factory's attention to the next steps — deburring, grinding, polishing, sealing — matters more.

What to actually ask your supplier — a checklist

What thickness is the metal actually going to be? Don't trust a drawing. Ask for the gauge.
What cut tolerance do they guarantee? If it's not ±0.1mm, don't buy fine lettering from them.
Ask for the edge finish — laser, water jet, or plasma? If they say plasma on a letter meant for a glossy facade, walk away.
Ask if they do cutting in-house or outsource. If they outsource, ask for the cutting shop's name. We've never had a factory give us a straight answer on that. You'll get it from us if you ask.
For outdoor letters, specify the metal finish. Our stainless is 304 as standard, 316 for coastal, and we say so. If they quote "stainless" without a grade, that's your red flag.

Bottom line from a guy who's cut tens of thousands of letters

Laser wins for 95% of metal sign letters. Water jet wins for thick plate and exotics. Plasma loses for letters unless you're painting over a sandblasted finish and don't care about edges. Stop overthinking the cutting method and start asking about tolerance, edge finish, and what happens after the cut — welding, grinding, finishing. That's where signs go to die.
