You've seen it a thousand times. A strip mall with twenty storefronts, and maybe two of them have signage that actually pulls you in off the sidewalk. The rest? Dead LEDs, mismatched colors, or letters that look like they were cut with a butter knife. I've been in this industry since 2005, and I've watched sign shops and business owners burn thousands on the wrong channel letters. Not because the product was bad, but because they didn't understand the fundamentals.
Here's the thing: LED channel letters are not a commodity. A $300 letter and a $1,200 letter can look identical in a photo. But one will be a dim, flickering mess in eighteen months. The other will still be pulling customers through your door a decade later. This guide breaks down exactly what you need to know—backed by factory-floor data from Aochuang Sign, a manufacturer who's been shipping worldwide since 2010.
Let's start with the three main configurations. You've got front-lit (standard face illumination), back-lit (halo or reverse-lit), and combination (both). Each has a specific job, and mixing them up is the fastest way to waste your budget.

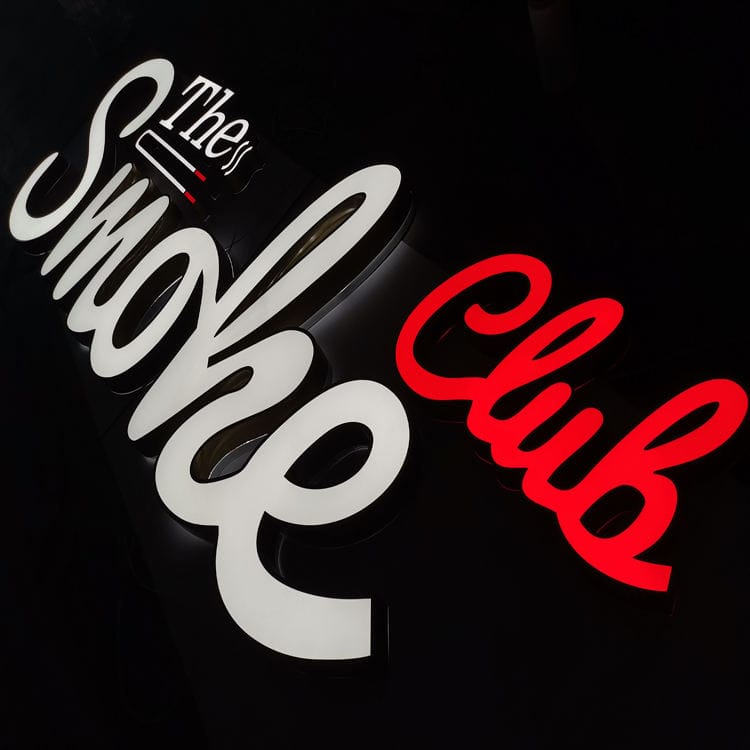

Front-lit channel letters are your workhorses. They're the brightest option, typically delivering 800-1,200 lumens per linear foot with standard 12V LED modules. The light hits a translucent acrylic face—usually 3/16" or 1/4" thick—and throws a uniform glow. Best application? High-traffic areas where you need visibility from 500+ feet. Think gas stations, fast food, big-box retail. Cost runs $12-$18 per inch of letter height for a standard 3D return.
Back-lit (halo-lit) letters are the opposite. The LEDs face the mounting wall, bouncing light off the surface behind the letter. You get a crisp silhouette effect. These are dimmer—around 400-600 lumens per linear foot—but they look premium. Ideal for high-end retail, law firms, medical offices. Cost is higher: $16-$24 per inch because the fabrication requires polished edges and tighter tolerances on the return depth (typically 1.5" to 2").
Combination lit does both. Front and back illumination. You get the brightness of front-lit with the silhouette of back-lit. But here's the catch: you need twice the LED modules, a deeper return (2.5" minimum), and a more complex power supply setup. Cost jumps to $20-$30 per inch. Only use this if you have a glass storefront or a dark alcove where the silhouette matters at night AND you need daytime pop.
| Type | Brightness (lumens/ft) | Cost per inch | Best For | Return Depth |
|---|---|---|---|---|
| Front-lit | 800-1,200 | $12-$18 | High-traffic, long-distance | 1" - 1.5" |
| Back-lit (halo) | 400-600 | $16-$24 | Premium, low-light areas | 1.5" - 2" |
| Combination | 800-1,200 (front) + 400-600 (back) | $20-$30 | Glass storefronts, dark alcoves | 2.5" min |
I've seen sign shops cram 12 LEDs per foot into a letter, thinking brighter is better. It's not. Overdriving LEDs creates hotspots—bright spots right at the module, dark spots in between. The result looks amateurish, and it kills your power supply faster.
The sweet spot for standard 12V SMD 2835 modules is 6-8 modules per linear foot. That gives you 60-80 lumens per module, spread evenly. For deeper letters (over 6" tall), you can bump it to 8-10 modules per foot, but only if you use a diffuser face material like 2447 Plexiglas or 7328 Acrylite. These materials scatter light at a 60-degree angle, eliminating hotspots.
Here's a factory-floor observation: Aochuang Sign tests every batch of modules at 85°C for 48 hours before assembly. If a module's lumen output drops more than 15% in that window, it gets rejected. That's why their 2-year warranty actually means something. Cheap modules from Alibaba? They'll drop 30% in the first year, and your sign will look like a haunted house by month 14.
Another thing: voltage drop. If you run 12V modules more than 15 feet from the power supply, you'll get a 0.5V drop per 10 feet. That dims the far end by 15-20%. Aochuang specs their runs at 18-gauge wire max for 12V, and they never exceed 12 feet from the transformer. Anything longer requires a 24V system with a step-down at each letter.
The return depth—how far the letter sticks out from the wall—isn't just aesthetic. It determines structural rigidity and light distribution. A 1" return on a 12" tall letter will flex in wind. A 1.5" return is standard for most applications. For letters over 24" tall, go to 2".
Face material matters more than most buyers realize. Acrylic is the standard—specifically 3/16" for letters under 12", 1/4" for larger. But there's a trap: standard acrylic (Plexiglas G) yellows in 3-5 years under UV. You need UV-stabilized acrylic like Plexiglas MC or Acrylite OP-4. These cost about 15% more but stay clear for 10+ years. Aochuang uses only UV-stabilized acrylic as standard. That's a $20 upcharge per square foot that most Chinese factories skip.
For back-lit letters, the face is usually aluminum or stainless steel, with the light escaping through a routed channel or a clear acrylic edge. The polished edge on a back-lit letter needs to be mirror-finish—600 grit minimum. Anything less and you'll see tool marks in the halo effect. I've rejected entire batches from other factories because they used 320 grit. Aochuang does 600 grit as standard, and they'll do 800 grit for an extra $5 per letter.
Every sign installer I know has a story about a power supply that died at 11:30 PM on a Friday. The cause is almost always the same: running the supply at 100% load. The rule is simple: never exceed 80% of the power supply's rated capacity. If you have 100W of LED modules, use a 125W supply minimum.
Aochuang uses Mean Well power supplies as standard. Mean Well LRS-350-12 is the workhorse—350W, 12V, 92% efficiency. They also offer an option for UL 8750 listed supplies (required for some US jurisdictions). The difference? A $25 supply from an unknown brand might have 70% efficiency and no overvoltage protection. A Mean Well costs $45-60 but lasts 50,000+ hours. I've seen Mean Wells run for 12 years in a sign with zero failures.
Wiring gauge is another place corners get cut. Aochuang uses 18-gauge stranded wire for all power connections inside the sign, with 14-gauge for the main feed. Some factories use 22-gauge because it's cheaper. That's a fire risk at 12V/5A. Don't accept it.
You can have the best channel letters in the world, but if they're mounted wrong, they'll look crooked and fail early. The industry standard for alignment is 1/8" tolerance over 10 feet. That means if your sign is 20 feet wide, the letters can't be more than 1/4" off from each other.
Here's a trick I learned the hard way: use a laser level on the top edge of every letter, not the bottom. The bottom can be hidden by a shadow line, but the top edge is always visible. Aochuang pre-drills mounting holes at the factory based on your wall measurements, and they include a template for each letter. That cuts installation time by 40%.
For outdoor mounts, you need stainless steel studs (304 grade minimum) with silicone gaskets between the letter and the wall. Brass is better for coastal areas (no corrosion), but it's 2x the cost. Aochuang uses 304 stainless as standard, with an option for 316 marine-grade for beachfront properties. That's a $15 upcharge per letter.
A 2-year warranty sounds good, but read the fine print. Most Chinese factories exclude LEDs from the warranty after 12 months. Aochuang covers the entire sign—LEDs, power supply, face material, trim—for 24 months. They also offer a 5-year extended warranty on the LED modules for an extra 10% of the sign cost.
Certifications matter for insurance and code compliance. CE is the minimum for Europe. UL is required in many US states (California, New York, Texas). RoHS means no lead or mercury in the components. Aochuang holds all four: CE, UL 8750, RoHS, and ISO 9001:2015 for quality management. I've audited their factory in Shenzhen. They have a dedicated testing lab with a salt spray chamber (for corrosion testing) and a thermal shock chamber (for extreme temperature cycling). That's not common for a manufacturer at their price point.
One more thing: ask for the LM-80 test report on the LEDs. That's the industry standard for lumen maintenance. It tells you how many hours until the LED drops to 70% of its original brightness. Aochuang's SMD 2835 modules have an LM-80 rating of 50,000 hours at 85°C. That's about 11 years of 12-hour-per-day operation.
Aochuang accepts MOQ of 1 piece. That's unusual for a factory-direct manufacturer. Most require 10-20 units minimum. For a single letter repair or a small business sign, you can order one letter at a time. Lead time is 7-15 days depending on complexity. I've had single letters ship in 5 days for a rush order (express shipping extra).
The standard formula is 1 inch of letter height per 10 feet of viewing distance. So if you want someone to read your sign from 200 feet away, you need 20" tall letters. For a storefront with a 10-foot setback, 8-12" letters work. Aochuang's design team will provide a free mockup with your exact dimensions. They also factor in the sign's mounting height—letters mounted 15 feet up need to be 30% larger than the same viewing distance at eye level.
You can do it yourself if you have basic electrical knowledge and a laser level. Aochuang includes pre-drilled holes, mounting templates, and a wiring diagram. But I've seen DIY installations fail because of improper weather sealing. The silicone gasket between the letter and the wall must be continuous—no gaps. If you're not comfortable with that, hire a licensed sign installer. Expect $200-$500 for a typical storefront installation, depending on height and access.
A local US sign shop will charge $25-$40 per inch for front-lit channel letters. Aochuang's factory-direct price is $12-$18 per inch. The difference comes from labor costs and overhead. But the materials are identical—same LED modules, same acrylic, same Mean Well power supplies. The trade-off is lead time (7-15 days vs. 2-3 weeks local) and shipping ($50-$150 for a typical sign via FedEx or DHL). For a 10-letter sign at 18" tall, you're looking at $2,160-$3,240 from Aochuang vs. $4,500-$7,200 locally. The savings are real, but you need to plan ahead.
With proper installation and the 2-year warranty, expect 8-12 years before you need to replace LEDs or the face material. The aluminum trim and stainless steel studs will last 20+ years. The acrylic face (UV-stabilized) will start to yellow around year 10. The LEDs (LM-80 rated at 50,000 hours) will be at 70% brightness around year 11 if run 12 hours/day. After that, you can replace just the LED modules for about $3-$5 per linear foot—much cheaper than a new sign.
