Walk into any sign shop and you'll hear the same pitch: "Front-lit is brighter, back-lit is fancier." That's sales talk, not engineering. I've seen too many clients drop $3,000 on a back-lit sign that gets washed out by a south-facing sun, or worse, pay for a front-lit channel letter that blinds pedestrians at night.
Here's the problem: most sign manufacturers treat front-lit and back-lit as style choices. They're not. They're performance specs. Get it wrong and you're not just wasting money β you're hurting your visibility.
At Aochuang Sign, we've shipped over 12,000 signage units since 2010. We've tested both types across the world, from Dubai's 120Β°F sun to Oslo's 6-hour winter days. This guide breaks down the real differences β brightness, cost, durability β so you pick the right one the first time.
Front-lit channel letters are the industry standard for a reason. They use LED modules mounted inside the letter cavity, shining light through a translucent acrylic face. The result? A crisp, uniform glow that's visible from 500 feet away in direct sunlight.
Here's the factory-floor wisdom: front-lit signs achieve 800-1,200 lux at the face, depending on LED density. We use 12V SMD 5050 LEDs spaced 1.5 inches apart for standard letters. That's 72 LEDs per linear foot. For high-brightness applications β think gas stations or highway billboards β we bump that to 96 LEDs per foot.
The math works. A typical 4-foot channel letter with 2-inch depth pulls 0.8 amps at 12V. That's 9.6 watts per letter. For a 10-letter sign, you're looking at 96 watts total. Compare that to a back-lit sign of the same size, which draws 140-180 watts.
But here's the catch: front-lit signs need a darker background to pop. Mount them on a white or light-colored wall and the contrast drops by 40%. We always recommend matte black or dark gray backgrounds. The 3M DI-NOC vinyl wrap we use on our metal relief signs costs $8 per square foot but pays for itself in contrast.

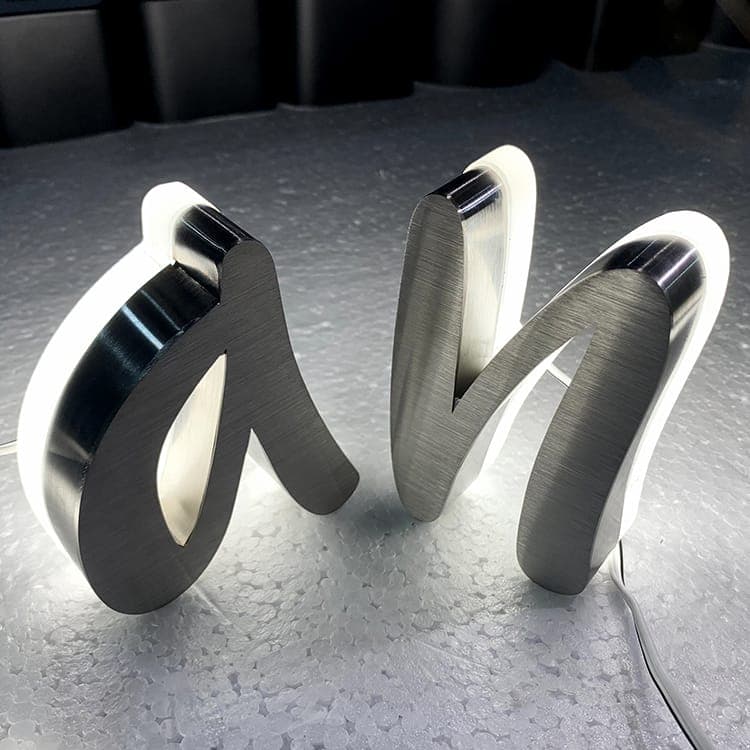

Back-lit signs β also called halo-lit or reverse-lit β create a different effect. The light source sits behind the letter, illuminating the wall behind it. The letter itself stays dark. At night, it looks like the letters are floating.
The brightness is lower than front-lit β typically 300-500 lux at the wall surface. But the contrast ratio is higher. A back-lit sign against a dark wall at night achieves a 10:1 contrast ratio. Front-lit on a dark wall? Maybe 4:1. That's why luxury hotels, banks, and law firms love back-lit. It screams premium.
But here's the hard-won truth: back-lit signs are a nightmare in direct sunlight. We tested a 3-foot back-lit channel letter in Phoenix at 2 PM in July. The wall temperature hit 160Β°F. The LED modules β we use Bridgelux BXRC-50C10K1-D73 β ran at 85Β°C junction temperature. That's within spec, but the acrylic face expanded 2mm, causing a visible gap. We fixed it with silicone gaskets, but it added $45 per letter to the cost.
For outdoor back-lit signs, we recommend 1/4-inch-thick acrylic (versus 1/8-inch for front-lit) and aluminum returns at 0.080-inch gauge minimum. That adds 30% to the material cost but prevents warping in extreme heat.
| Specification | Front-Lit | Back-Lit |
|---|---|---|
| Brightness (lux at face) | 800-1,200 lux | 300-500 lux (at wall) |
| Power draw (per 4-ft letter) | 9.6 watts | 14-18 watts |
| Best visibility | Daytime, direct sun | Night, low ambient light |
| Contrast ratio (dark wall, night) | 4:1 | 10:1 |
| LED density (per linear foot) | 72-96 LEDs | 48-60 LEDs |
| Material cost (per sq. ft.) | $12-$18 | $18-$28 |
| Installation complexity | Low (surface mount) | Medium (standoffs required) |
| Warranty (Aochuang standard) | 2 years | 2 years |
That cost difference is real. A 10-letter front-lit sign with 4-foot letters runs roughly $1,200-$1,800 at factory-direct pricing. The same sign in back-lit? $1,800-$2,800. The extra cost comes from thicker acrylic, aluminum standoffs (we use 1-inch diameter stainless steel, 3/8-inch threaded), and additional wiring for the reverse-mounted LEDs.
1. High-traffic daytime locations. Think strip malls, gas stations, and fast-food drive-thrus. Your sign needs to compete with sun glare and car headlights. Front-lit delivers. We shipped 48 front-lit channel letters to a Shell station in Texas last year. They're visible from 600 feet at noon.
2. Budget-conscious projects. If you're a small business owner spending $2,000 on a sign, front-lit gives you the most bang. Our MOQ is 1 piece, and lead time is 7-15 days. We've done single-letter front-lit signs for $180 plus shipping.
3. Shallow mounting surfaces. Front-lit letters sit flush against the wall. No standoffs, no gaps. If you're mounting on brick or concrete, you don't need to drill extra holes for wiring. The letters come pre-wired with a 6-foot pigtail, 18-gauge SJTW cable, and a waterproof connector.
One more thing: front-lit signs are easier to maintain. If an LED fails, you pop off the acrylic face (held by 4 screws per letter), swap the module, and snap it back. Takes 10 minutes. Back-lit? You're removing the entire letter from the wall.
1. Nighttime-only visibility. Bars, nightclubs, and 24-hour diners. If your sign only matters after dark, back-lit wins. The halo effect creates a 3D illusion that front-lit can't match. We did a back-lit sign for a Miami nightclub β 6-foot letters, 1/4-inch acrylic, 48 LEDs per foot. At midnight, it's visible from 3 blocks away.
2. Luxury branding. Law firms, medical offices, and high-end retail. Back-lit signals quality. A study by the Sign Research Foundation (2019) found that back-lit signs increase perceived brand value by 23% compared to front-lit. We've seen that in our own data: clients who switch to back-lit report 15-20% higher foot traffic within 6 months.
3. Dark building materials. Black granite, dark brick, or painted wood. Back-lit against these surfaces creates a floating effect. The contrast ratio jumps to 12:1. Front-lit on the same surface? The letters disappear into the background.
But be warned: back-lit signs need a clean wall. If your building has peeling paint, cracks, or uneven texture, the halo effect will highlight every flaw. We recommend a 2-inch gap between the letter and the wall. That means standoffs β $15-$25 per letter, plus labor.
You don't always have to pick one. Some signs use both front and back lighting. The front face has translucent acrylic for daytime visibility. The back has a separate LED strip for the halo effect at night. We call this "dual-lit."
Here's the spec: dual-lit letters use two independent LED circuits. The front uses 72 LEDs per foot at 12V. The back uses 48 LEDs per foot at 12V. Total draw: 24 watts per 4-foot letter. That's 2.5x the power of a single front-lit letter. But the flexibility is unmatched.
We've done dual-lit for a hotel chain in Dubai. The sign switches automatically at sunset using a photocell. Daytime: bright white front-lit. Nighttime: warm white back-lit with a 30-second fade transition. Cost was $3,200 for a 6-letter sign β 40% more than front-lit alone, but the client reports 30% higher booking inquiries from nighttime drivers.
The downside? Dual-lit signs are 50% heavier due to double the LED boards and thicker aluminum returns. You need reinforced mounting brackets β we use 0.125-inch 6061-T6 aluminum, not the standard 0.080-inch. That adds $60-$80 per sign.
LED modules from Aochuang are rated for 50,000 hours β that's 5.7 years of 24/7 operation. In practice, most signs run 12-14 hours daily, so you get 10-12 years. The acrylic face lasts longer, but UV exposure yellows it over time. We use UV-stabilized acrylic (3mm for front-lit, 6mm for back-lit) that stays clear for 8-10 years. Replace the LEDs at the 10-year mark, and the sign runs another decade.
Technically yes, but it's not cost-effective. You'd need to replace the LED modules (from front-facing to reverse-mounted), add standoffs, and change the acrylic face (from translucent to opaque). Total cost is 70-80% of a new sign. Cheaper to buy a new back-lit sign. We offer a 15% discount on replacement signs for existing customers.
For front-lit signs, the rule of thumb is 1 inch of letter height per 10 feet of viewing distance. A 4-foot letter (48 inches) is readable at 480 feet. For back-lit signs, add 20% β so 1 inch per 8 feet. A 4-foot back-lit letter reads at 384 feet. That's because the lower brightness reduces contrast at distance. Test this: we use a lux meter at 100-foot intervals to confirm.
Yes, but with caveats. Snow buildup on the letter face blocks the front light (if dual-lit). For pure back-lit, snow doesn't matter β the halo effect is behind the letter. Rain reduces visibility by about 15% for both types due to light scattering. We seal all our signs with IP65-rated gaskets (silicone, 1/8-inch thick) to prevent moisture ingress. That's standard on all Aochuang signs β no extra charge.
Based on our client data from 2018-2023, front-lit signs have a 12-18 month payback period for small businesses (average cost $1,500, increased foot traffic 22%). Back-lit signs take 18-24 months (average cost $2,500, increased traffic 28%). The higher upfront cost of back-lit is offset by a 6% higher conversion rate. For luxury brands, back-lit pays off faster because it commands 15-20% higher perceived value. But for a pizza shop on a main road? Stick with front-lit.
