Look, I've pulled apart a dozen "premium" signs that failed within two years of installation. Every single one had the same problem: somebody bolted two different metals together without thinking about what happens chemically when they meet. That's not a materials problem. It's a planning problem.
Galvanic corrosion isn't some obscure lab phenomenon. It's what happens when you join a reactive metal like aluminum to a nobler metal like stainless steel, add a little moisture, and turn your sign into a battery. The aluminum becomes the sacrificial anode. It eats itself to keep the stainless happy. Your sign doesn't fall apart dramatically—it just develops white powder around the mounting holes, then the holes wallow out, and one windy night the whole assembly lets go.
---

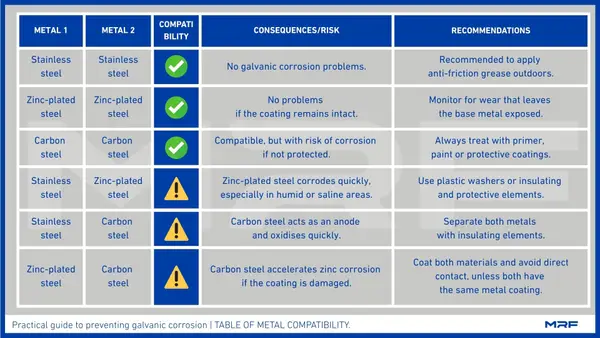

Here's what nobody tells you: the galvanic series chart everyone references in spec sheets is a starting point, not gospel. It ranks metals by their electrical potential in seawater, but your sign isn't sitting in the ocean. It's baking in Arizona sun, freezing in Minnesota winters, or getting hosed with road salt in Chicago. The corrosion rate depends on surface area ratio, temperature, humidity, and how much of each metal is actually exposed.
The ugly truth is that stainless steel and aluminum are a terrible pair unless you isolate them. I've seen it go wrong: a sign shop in Texas welded 304 stainless brackets directly onto an aluminum cabinet. Eighteen months later, the cabinet looked like it had leprosy. The fix isn't expensive—it's a nylon washer and a rubber gasket—but nobody did it because the drawing looked fine.
---
Let's get the basics straight. When two dissimilar metals touch in the presence of an electrolyte—water, salt, even condensation—you get a galvanic couple. The less noble metal corrodes. For signage, the practical ranking from most active to least active: aluminum, zinc, steel, stainless steel, brass, bronze, copper. The farther apart two metals are on this list, the faster the sacrificial one gets eaten.
For outdoor signage, keep the voltage difference under 0.25V whenever possible. Aluminum and stainless sit about 0.5V apart in seawater. That's too much. Aluminum and brass are worse. Aluminum and copper are a death sentence.
---
Here's what I recommend from actual production experience.
| Metal | Pairing Risk | Isolation Needed |
|-------|-------------|------------------|
| 304 stainless + aluminum | Moderate | Yes — always isolate |
| 316 stainless + aluminum | Moderate | Yes — same rule |
| Stainless + brass | Low | Not critical if dry |
| Aluminum + brass/copper | High | Never direct contact |
| 304 + 316 stainless | Negligible | Only for water intrusion |
| Stainless + treated steel | Low–moderate | Varies by coating |
Source: field failures and Aochuang's own QC records.
---
If you're building
stainless steel letters for a coastal client, 316 stainless is worth the 20-30% premium. But even 316 will corrode if you bolt it directly to an aluminum frame. The isolation layer isn't optional—it's the entire point.
The cheapest insurance is a physical barrier. Use nylon or rubber washers between every dissimilar metal junction. Use stainless fasteners through aluminum, not the reverse. Never let copper or brass components come into direct contact with aluminum—the galvanic reaction is aggressive enough to pit the aluminum visibly within months. This isn't a someday problem. It's a Thursday problem.
---
Rookie mistake number one: relying on paint to be your isolator. Powder coating on aluminum is a decent barrier until you drill a hole through it for a mounting bolt. Now you've got bare aluminum touching a stainless screw. The paint didn't fail—you failed by not protecting the edge.
Rookie mistake number two: using stainless steel screws in aluminum without any thread sealant. The threads are a perfect crevice for moisture to sit. Add a drop of thread-locking compound with a corrosion inhibitor. It's cheap, it seals the gap, and it stops water from acting as the electrolyte bridge between dissimilar metals.
---
Here's what nobody tells you about anodized aluminum. The anodized layer is aluminum oxide—it's actually non-conductive and corrosion-resistant. But the moment you cut it, drill it, or scratch it, you expose bare aluminum at the edges. That exposed metal is the site of galvanic attack. If you're using anodized aluminum for a sign, every cut edge needs a protective treatment or at least a moisture-sealing primer.
Neutral cure silicone is your friend. Acid cure silicone releases acetic acid as it cures—that acid accelerates corrosion on bare aluminum. Always check the tube before you seal a junction. We use neutral cure silicone on every mixed-metal connection in our
dual-lit channel letters because it protects both the metal and the LED wiring inside the letter cavity.
---
The sign industry is full of compromises. But mixed-metal corrosion is one of those rare things where the fix is so cheap that there's no excuse for getting it wrong. Let's break down the actual numbers.
A nylon isolation washer costs $0.02. A stainless steel letter with a proper isolation installation will hold up for 10-15 years outdoors. Without that washer, you're looking at a 2-3 year lifespan and a callback on a $4,000 installation. Do the math.
---
The most common installation sequence in the field: your crew mounts stainless steel letters on an aluminum frame and uses stainless self-tapping screws because they "match the letters." They just created a galvanic cell at every screw point. The aluminum frame will corrode around each screw hole, and within 18 months the screws will be loose. I've seen this happen on signs that were sold as "maintenance-free."
The correct approach is to use stainless steel mounting studs or brackets that are electroplated with a corrosion barrier, and to place a nylon or PTFE washer between the stainless bracket and the aluminum frame. Then seal the junction with a dab of silicone. This takes maybe 15 minutes per letter.
---
On the fabrication side, we do everything we can to help. When we build
back-lit halo letters for export, we use stainless steel internally and aluminum for the mounting rails—and we isolate every junction ourselves before shipping. The customer gets a sign that's assembled the right way and a mounting kit that preserves the integrity of the metals. We can't control what happens on site after that, but we can give you the right starting point.
---
The water management side is just as critical. If your sign is inside a waterproof envelope that never lets moisture in, galvanic corrosion is largely theoretical. But nobody builds a fully waterproof sign for outdoor use. Sealants age. Gaskets crack. Vents designed to let condensation escape actually let rain and humidity in.
Design for water to drain out. Every letter should have drain holes at the lowest point. We drill 3mm weep holes in every sealed letter we build—including
rimless channel letters. It sounds counterintuitive, but a small, designed drain hole beats an unplanned crack every time. Water that can't escape sits in the bottom of the letter, mixes with trapped dirt, and becomes an electrolyte bath that accelerates corrosion on every metal inside.
---
Here's what nobody tells you: the most common source of corrosion in mixed-metal signs isn't the metals themselves. It's the fasteners. Stainless steel screws are standard, sure. But the ones that come from the hardware store down the street are often 410 stainless—magnetic, cheaper, and less corrosion-resistant than the 304 or 316 you specified. The screw looks identical. It fails differently.
We only use 304 stainless fasteners for exterior applications, and 316 for coastal ones. When a customer orders
aluminum letters for a beachfront property, every fastener in the box is 316—including the ones that don't touch the aluminum anywhere near water. It costs a bit more. It saves a conversation we don't want to have later.
---
Let's talk about the electrical side too, because it's a cousin to galvanic corrosion. Any stray current from an improperly grounded electrical system accelerates metal loss. That's called stray current corrosion, and it's ugly. We've seen aluminum letters near an ungrounded power supply get pit marks that matched the AC frequency. Make sure every sign circuit has a solid ground. It protects both people and metal.
If you're using LEDs, the L70 rating matters for light output, but the thermal management matters for the power supply and the metal box it's inside. Heat accelerates chemical reactions, including corrosion. Good thermal management—including not overstuffing the letters—keeps internal temperatures lower and slows the whole process down.
---
I've seen sign shops in the US buy cheap letters from overseas, watch them fail, and blame "cheap Chinese manufacturing." The truth is that the metal was usually fine—the fabrication was what cut corners. Thin stainless, gaps in the welds, and poor isolation between the metal layers. We rate our
LED modules for 50,000 hours at L70, but the enclosure has to survive that long too. There's no point in LEDs that outlast the metal they're mounted in.
Aochuang has been building signs in Lu'an, Anhui since 2010. We've exported worldwide. We've seen the callbacks that come from cheap fabrication, and we've redesigned the way we assemble mixed-metal signs to avoid those failures. When you import from us, you're not just buying a sign—you're buying a process that's been hardened by 14 years of field failures and fixes.
---
Here's the part where I tell you what we can't do. We can't control what your installer does with a screw gun. We can't make a sign that survives being mounted with the wrong fasteners on site. We can build the isolation into the letter assembly so there's no bare aluminum-to-steel contact inside the sign, but if your crew mounts a stainless bracket directly to an aluminum wall panel with a steel screw, that's on them.
That's why we include mounting instructions in every export box. Not because we think you don't know how to mount a sign—because we know you won't remember the washers when you're hanging from a ladder with a drill in one hand. The instructions take 2 minutes to read and save a 2-hour retrofitting trip.
---
Timeline matters too. If your white metal channels are showing signs of corrosion within 6 months, that's a red flag. Check the weld points first. We TIG weld stainless up to 2mm without filler rod—that maintains the corrosion resistance. If a welder used a carbon steel wire brush on stainless, that contaminates the joint and causes corrosion at the weld line. We use separate brushes for stainless and carbon steel. That's a production detail that costs a nickel but saves the whole assembly.
---
One more thing—condensation is the sneaky killer. A sign that's hermetically sealed but experiences thermal cycling will draw in humid air when it's cooler inside. That's naturally occurring. If that condensation sits on a mixed-metal junction, you get corrosion even on a sign that's had no external water intrusion. We get around this by using a desiccant packet or a small vent with a filter in larger assemblies. If the sign is sealed, it needs a way to breathe or a way to dry out.
---
Here's what nobody tells you about clear coats. Some shops "protect" aluminum letters with a clear coat before installing stainless steel studs. The clear coat is only as good as its bond to the metal. If the aluminum wasn't etched and pre-treated properly, the clear coat delaminates and traps moisture between the coating and the metal. That's worse than no coating at all. We use pre-treatment with an etch primer on aluminum before any powder coating or paint. It's an extra step, but it prevents coating failure.
---
For business buyers and importers, your checklist needs to include galvanic corrosion prevention in the specs you send to factories. Ask the factory what isolation materials they use. Ask what thread sealant they apply. Ask if they use 304 or 410 stainless for fasteners. If the factory doesn't know those answers, they're not thinking about post-delivery performance—they're just cutting and welding metal.
---
The final verdict: mixed-metal signage works perfectly when you respect the science. Use the right metal for the right environment. Isolate dissimilar metals at every junction. Drain water away from interior cavities. Vent condensation. Ground everything properly. And don't trust a powder-coat layer to protect a drilled hole. If you follow these rules, a stainless steel letter will last 10+ years outdoors, and an aluminum letter will last 8-12 years. If you skip them, you'll be replacing hardware in 2-6 years.
We can't guarantee your installer follows the rules. But we can guarantee the letters we ship have 304 stainless frames, properly isolated mounting points, drain holes, and a 2-year LED warranty and 1-year power supply warranty that we actually honor. That's not marketing talk. That's how we've stayed in business since 2010.
---
## Mixed Metal Signage Corrosion Prevention Checklist
| Step | Action | Why |
|------|--------|-----|
| 1 | Specify 304 or 316 stainless for coastal | Correct alloy for environment |
| 2 | Use nylon or rubber isolation washers | Break the galvanic couple |
| 3 | Use 304/316 fasteners everywhere | Prevent fastener failure |
| 4 | Seal all drilled holes with neutral cure silicone | Block electrolyte path |
| 5 | Drill drain holes at letter low points | Let condensation escape |
| 6 | Seal edges of anodized aluminum | Protect cut edges |
| 7 | Use etch primer under any coating | Prevent delamination |
| 8 | Ground all electrical circuits properly | Stop stray current corrosion |
| 9 | Include desiccant in sealed assemblies | Absorb internal moisture |
| 10 | Ask your factory about isolation materials | Verify they actually do it |
---
You want a factory that tells you the truth about what protects your investment. That's why we're telling you this—not to scare you, but to make sure that when you order
front-lit channel letters from ourselves or any other supplier, you know exactly what to specify and what to inspect when they arrive. A sign is a 10-year decision. Make it a good one.
