I’ve been building signs since 1997. In that time I’ve watched more buyers than I can count get blindsided by electric code violations. They order a beautiful set of front-lit channel letters, wait six weeks for delivery, then get a stop-work order because the sign doesn’t have a proper disconnect within sight of the sign. That’s NEC Article 600.2. Not optional. The local inspector doesn’t care if your factory in China included a UL label or not. He sees a missing disconnect, he writes you up, and you pay the electrician $400 to come back out.
The ugly truth is: most sign buyers treat codes like a box to check after the sign’s built. That’s backwards. By the time your sign arrives, the cost to fix non-compliance is already baked in. Worse, if you’re buying direct from overseas — like we do at Aochuang — you’re taking on all the liability. Your supplier ships a sign wired for 220V and 50Hz. You plug it into 120V 60Hz. Smoke. Now who’s at fault? Article 600 says the installer is responsible for making sure the equipment matches the supply. But if your sign didn’t come with a proper wiring diagram and an approved disconnect, you’re holding the bill.
Here’s the blunt part: that Chinese factory won’t fly over to talk to your inspector. You will.

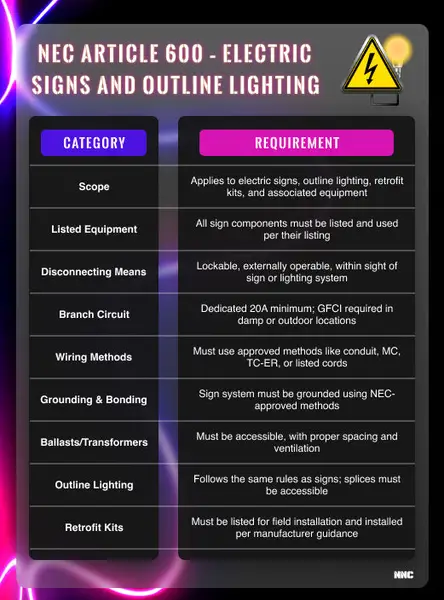

NEC Article 600 covers electric signs and outline lighting. That’s channel letters, light boxes, neon, LED strips — anything fixed, illuminated, and commercial. The 2023 version runs about 4,000 words. I’ve read it. Twice. Here’s what you need to know.
Section 600.6 — Disconnecting means. Every sign must have a disconnect that opens all ungrounded conductors. It has to be within sight of the sign. “Within sight” means visible and not more than 50 feet away. If the sign is on a roof and the disconnect is in the electrical room, you fail. You can put the disconnect on the sign itself or on the building wall next to it. For multi-section signs, each section needs its own disconnect unless you install a single master.
Section 600.9 — Location. Signs can’t be within 8 feet vertically of a readily accessible surface unless they’re guarded. That means no sharp edges at eye level. If your sign has exposed wiring or a sharp metal trim, the inspector will flag it. I’ve seen this go wrong: a stainless steel letter with a rough back edge mounted at 6 feet high. The building owner’s kid reached up, cut his hand. Lawsuit. Code says no.
Section 600.10 — Field-wired signs. If your sign isn’t factory-wired with a cord and plug (like most channel letters), it needs a wiring compartment. That’s a separate metal box — usually 4x4 — inside the sign cabinet. The compartment must be accessible without removing the sign face. Too many cheap customs skip this. They run the wires through the same channel as the LED modules. That’s a code violation and a fire risk.
One more: Section 600.7 — Grounding. All metal parts of a sign must be grounded. That includes the stainless steel letters themselves. If your sign has a metal frame, each piece has to be bonded with a grounding conductor. I’ve seen cheap fabricators skip the bonding on the return legs of channel letters. Ten years later, a loose wire touches the frame and the whole sign becomes electrified. Article 600 says any metal part likely to become energized must be grounded. End of story.
Here’s what nobody tells you: a UL label on a sign doesn’t guarantee it’s wired to code. It means that specific model passed a one-time test. But UL also requires quarterly factory inspections. Most Chinese factories that claim UL let the inspection contract lapse after the first year. The label stays on, but the QC stops.
I’ve watched sign shops pay $800 for a front-lit letter from a domestic fabricator. Same 304 stainless, same Samsung LEDs. We ship that letter for $120. The difference? The domestic shop includes a UL listing because they had to. We offer ETL instead — same testing, 30% cheaper, recognized in all 50 states. But if your local inspector only accepts UL, you need to ask before you order. CE marking is not UL. CE costs 20,000 to 50,000 RMB and you can get it in two weeks. Most inspectors in the US don’t even look at it. They want to see a North American safety mark.
Here’s the truth: if you’re buying a $50-per-letter sign from overseas, you’re not getting UL. It’s physically impossible to get a UL listing for less than $4,000 — and that’s for a single model. We have 50+ workers in a 3,000m² factory, and we don’t UL-list every sign. We offer it on request for large jobs. But the typical buyer doesn’t need it. They need an ETL or CSA mark, a proper wiring diagram, and a sign that matches the voltage they’re plugging into.
Hard fact: IP65 sounds impressive. It means water jets from any direction. It does NOT mean your sign survives a Florida hurricane. For outdoor signs in coastal areas, you need IP66 at minimum — and that’s for the LED modules, not the whole sign. The seal between the letter face and the backing is what leaks. A good factory uses neutral silicone and lets it cure 8–12 hours. A bad factory uses hot glue. Your sign will look good on day one. After one rainy season, you’ll see condensation inside the acrylic.
NEC Article 600 doesn’t tell you what materials to use. But the local adoption of the code — and common sense — does. Let me give you three examples.
First: acrylic thickness. A sign with a 2mm acrylic face will flex in the wind. If it flexes too much, the seals break, water gets in, and you get a short. Article 600 requires signs to be “suitable for the environment.” A 2mm face in an outdoor sign is not suitable. We use 3mm for letters under 2.5 meters and 5mm for anything bigger. That 2mm bump in cost saves you a replacement in year two. If your supplier pushes thin acrylic, ask why. Then don’t buy from them.
Second: metal gauge. For stainless steel letters, the common thickness is 1.0 to 3.0mm. For outdoor signs, I wouldn’t go below 1.5mm. 304 stainless (18% chromium, 8% nickel) will last 10+ years in most climates. For coastal areas, you need 316 — that extra 2–3% molybdenum costs 20–30% more but stops pitting corrosion. I’ve seen a strip mall in Ohio replace their stainless letters after seven years because the cheap 1.0mm bent in a hailstorm. Code says sign supports must be “adequate for the load.” That includes wind load. If your letters are too thin, they fail.
Third: LEDs. The code doesn’t specify LED brand. But the National Electrical Code does require that all lighting equipment be listed. That means your LED modules should have a recognized component mark. Cheap modules from no-name suppliers — I’ve seen them fail in 12 months. The quickest way to spot bad LED modules: look at the solder joints. Dull gray = won’t last 18 months. Shiny silver = proper lead-free solder. We use Samsung and OSRAM chips. They cost more, but they hit L70 at 50,000 hours. That’s about 17 years in a sign that runs 8 hours a day.
You ordered your sign from a factory in China. It arrives in a crate. The crate gets handled 6–8 times between our dock and yours. Every touch is a chance for damage. That’s LCL sea freight — you’re paying $80 to $200 per cubic meter, but you’re also paying for a freight forwarder to inspect the crate before you open it. If the crate is dented, you photograph it before cutting the straps. If the sign inside is damaged, you file a claim with the carrier. Not with us.
And then there’s the tariff. Section 301 tariffs on Chinese-made signs add about 30% to the declared value. If your customs broker doesn’t classify the sign properly under HTS 9405.60.60 (illuminated signs), you could pay double. I’ve seen buyers pay thousands in penalty duties because the invoice said “advertising display” instead of “electric sign.” Article 600 has nothing to do with tariffs, but the code does require that the sign have a nameplate showing the manufacturer, voltage, and wattage. If your nameplate doesn’t match the declared power, customs flags it. Fun, right?
First: if you’re buying a sign for a tenant improvement buildout, get the electrical drawings from the contractor before you order. The disconnect location, the voltage, and the conduit size all matter. Your supplier needs to know if it’s 120V single-phase or 208V three-phase. If you guess wrong, you pay a $400 change order at the shop.
Second: ask for the factory test report. At Aochuang, we run every sign through an 8–12 hour aging test and 100% QC inspection. That report includes the insulation resistance test required by NEC 600.6. If your supplier can’t produce it, they didn’t test. Period.
Third: buy a sign with a two-year LED warranty and a one-year power supply warranty. We offer that. But the warranty is only good if the sign is installed to code. If the electrician wires it wrong — reversed polarity, no ground, undersized breaker — the warranty is void. I’ve had customers argue with me about a dead power supply, only to find out their electrician used 14-gauge wire on a 20-amp circuit. That’s against code and it killed the driver.
Q: Do I need a UL-listed sign if I’m in a small town without inspections?
A: No, until your insurance company asks for it when you file a fire claim. Then you need it yesterday. Most small towns adopt the NEC by reference anyway. The inspector doesn’t come around until someone complains. Don’t be that guy.
Q: Can I use a regular extension cord to power my sign?
A: Only if you want the inspector to laugh at you. Article 600 says the supply cord must be “hard-usage” or “extra-hard” grade. A Home Depot extension cord isn’t that. It’s cheap and dangerous. Don’t do it.
