Let me tell you something that still makes me wince. I've seen a $12,000 halo-lit sign fail in under 14 months because the installer used cheap silicone off a hardware store shelf. The LED modules themselves? Samsung chips, good for 50,000 hours. The power supply? Oversized by 20%. But moisture crept in through a sealant that couldn't handle the freeze-thaw cycle. The sign was dead. The client blamed the manufacturer.
Here's the hard truth: the sign doesn't fail in the factory. It fails at the seam between the letter return and the wall. And that seam is your responsibility.
This guide isn't theory. It's 15 years of watching what works and what doesn't on loading docks, hotel facades, and coastal storefronts from Miami to Seattle. We're going to cover installation from the ground up—site assessment, mounting, wiring, sealing, and the one pre-install test that can cut your field failure rate by 60%.
Most guides jump straight to mounting. That's a mistake. The single most effective step you can take happens in your shop, not on the job site.
Build a full-scale mockup of one channel letter. Not a scale model. One actual letter, with the same acrylic, the same LED modules, the same return material, and the same sealing method you plan to use on the entire sign. Then put it through a 48-hour torture test: simulated rain (a garden hose with a mist nozzle works), UV exposure (a cheap grow light if you don't have a chamber), and a freeze-thaw cycle if you're in a cold climate.
Why does this work? Because it catches the hidden failure points. Maybe the neutral silicone you're using doesn't bond properly to that specific batch of aluminum. Or the LED module spacing creates a hot spot you can't see until the sign is lit. Or the gasket material shrinks after 24 hours of UV. In my experience, this single step cuts field failure rates by 60% or more. It costs you one letter worth of material and two days. It saves you a truck roll and a client screaming about a dark sign.
You can't install a sign until you understand what you're attaching it to. And what the wind is going to do to it.
Wind load is not optional math. A 3-foot-tall channel letter on a flat wall in a 90-mph wind zone generates roughly 30-40 pounds of force per square foot of face area. That's a lot of leverage on a 1/4-inch anchor bolt. For a typical 8-letter sign with 18-inch tall letters, you're looking at 15-20 square feet of face area. At 35 psf, that's over 500 pounds of total wind force. Your mounting system needs to handle that, plus a safety factor of 2-3x.
Wall composition determines your anchor strategy:
The ADA 48-inch rule: If your sign is tactile (raised letters, Braille), the bottom must be mounted 48-60 inches above the finished floor. Non-glare surface is required. Grade 2 Braille is mandatory. This applies to exterior signs at building entrances, not rooftop signs. Ignore it, and you're looking at a code violation and a redo.
Your choice of return material determines the sign's lifespan. Here's the data:
| Material | Outdoor Life | Cost per Letter (Factory, Non-Lit) | Best For | Risk |
|---|---|---|---|---|
| Aluminum (1.0-1.6mm) | 8-12 years | $10-25 | Standard storefronts, interior, low-corrosion areas | Galvanic corrosion if in contact with steel |
| Stainless Steel 304 (1.0-3.0mm) | 10+ years | $15-40 | High-traffic, moderate coastal, industrial | Surface pitting in heavy salt spray |
| Stainless Steel 316 (with 2-3% Mo) | 15+ years | 20-30% premium over 304 | Coastal, marine environments, chemical plants | Higher initial cost |
Here's the factory-floor wisdom: For a standard strip mall sign in a landlocked city, aluminum is fine. It's lightweight (1/3 the weight of steel), rust-proof naturally, and powder coating extends its life. But if you're installing on a beachfront property in Florida or a pier in Seattle, use 316 stainless. The 20-30% cost premium pays for itself in year 8 when the aluminum sign starts showing corrosion. I've seen aluminum letters on Galveston storefronts fail in 5 years. The 316 letters on the same block? Still going at 12.
The other factor: weight. A 6-inch tall aluminum letter might weigh 2 pounds. The same letter in 304 stainless weighs about 6 pounds. Multiply that by 12 letters, and you're adding 50 pounds to your mounting structure. Plan accordingly.
LED channel letters are low-voltage systems (typically 12V or 24V DC). But the power supply is often mounted 20, 50, or even 100 feet away from the sign. That's where voltage drop kills your install.
Here's the rule: For a 12V system, you want no more than a 5% voltage drop from the power supply to the farthest LED module. That means the voltage at the module should be at least 11.4V. Below that, the LEDs dim, flicker, or fail to light entirely.
Calculate it: Voltage drop = (2 × wire length in feet × current in amps × resistance per foot of wire) / 1000. For 18 AWG wire, resistance is about 6.4 ohms per 1000 feet. For 14 AWG, it's 2.5 ohms. For 12 AWG, 1.6 ohms.
Example: You have a 20-foot run from power supply to sign. The total LED load is 8 amps at 12V. Using 18 AWG wire: VD = (2 × 20 × 8 × 6.4) / 1000 = 2.05V. That's a 17% drop. Your modules see 9.95V. They'll be dim or dead. Switch to 14 AWG: VD = (2 × 20 × 8 × 2.5) / 1000 = 0.8V. That's 6.7% drop. Still marginal. Go to 12 AWG: VD = (2 × 20 × 8 × 1.6) / 1000 = 0.51V. That's 4.3%. Acceptable.
Power supply sizing: Take your total LED wattage and multiply by 1.25. That's your minimum power supply wattage. For example, 12 letters, each consuming 15W = 180W total. 180 × 1.25 = 225W. Buy a 250W power supply. Never run a power supply at 100% load—it halves its lifespan.
Conduit: For outdoor installations, use schedule 80 PVC or liquid-tight flexible metal conduit. All low-voltage wiring must be in conduit if it enters a building or is exposed to physical damage. Ground the conduit per NEC Article 600. Use a separate ground wire, not just the conduit itself.
Smart controllers: This is where you can differentiate your install. A basic timer is cheap ($20). But a smart controller with remote monitoring (like a Lutron or a simple DMX-based system) lets the client adjust brightness, set schedules, and even monitor for failures from their phone. It adds $200-500 to the install cost but can save $1,000+ in service calls. I've started recommending them for any sign over 10 letters or in hard-to-access locations.
Brick, stone, and stucco are never perfectly flat. The sign's mounting plate needs to compensate for that.
Use a mounting rail, not individual studs. A continuous aluminum or stainless steel rail (1/8-inch thick, 2-3 inches wide) spans the entire length of the sign. You attach the rail to the wall with anchors every 12-16 inches. Then you attach each channel letter to the rail using threaded studs and nuts. This gives you a flat reference surface regardless of the wall's imperfections.
Shimming: If the wall has a 1/4-inch dip, you use stainless steel shims between the rail and the letter. Don't use plastic shims outdoors—they degrade in UV. The goal is zero visible gaps between the letter return and the rail. A 1/8-inch gap is a pest highway. A 1/4-inch gap is a water channel.
Spacing between letters: For most fonts, 2-4 inches between letters looks right. Measure from the edge of one return to the edge of the next. Use a laser level to ensure the baseline is perfectly straight. A 1/8-inch tilt over 10 feet is visible from the street.
For brick or stone without drilling: You can't. There is no code-compliant way to mount a heavy outdoor sign without drilling into the facade. Surface-mount adhesive systems (like VHB tape) are for interior signs only. Outdoors, wind load and thermal expansion will pull them off within a year. Drill the anchors. Use stainless steel. Seal the holes.
Water is the enemy. Pests are a close second. Here's how to keep both out.
LED module waterproofing: Use IP65-rated LED modules as a minimum. For coastal or high-humidity areas, go IP66 or IP68. But even IP68 modules fail if the wiring connections aren't sealed. Every splice must be inside a waterproof junction box or sealed with heat-shrink tubing and dielectric grease. Do not rely on wire nuts alone—they corrode.
Gaskets: A closed-cell neoprene or silicone gasket between the letter return and the mounting surface is non-negotiable. The gasket should be 1/8 to 1/4 inch thick and compress to 50-70% of its original thickness when tightened. This creates a positive seal. For letters over 24 inches tall, use a gasket with a pressure-sensitive adhesive backing to keep it in place during installation.
Sealant: Use a neutral-cure silicone specifically rated for outdoor use and for bonding to the materials you're using (aluminum, stainless, acrylic). Temperature range: -40°F to 200°F minimum. Apply a continuous bead along the top and sides of each letter return. Leave the bottom open for drainage—you want any condensation to exit, not pool inside. Do not use silicone that has an acetic acid (vinegar) smell during curing. It corrodes metal and can damage LED modules.
Pest intrusion: If you see a gap larger than 1/4 inch, it's an invitation. Mice, wasps, and ants love warm, dry channel letters. Use stainless steel mesh (1/8-inch opening) over any ventilation holes or drainage gaps. Staple or screw it in place. Seal the edges with silicone.
Don't leave the job site until you've run a full test cycle.
Test 1: Visual inspection. Light the sign. Walk 50 feet away. Look for hot spots (brighter areas) or dead modules. SMD 2835 modules should have even brightness across the entire letter. Spacing between modules should be 1-2 inches for 3mm acrylic, 2-3 inches for 5mm acrylic. If you see a bright ring around the edge and a dark center, the modules are too far apart.
Test 2: Flicker test. Turn the sign on and off three times in quick succession. If any letter flickers or takes more than 1 second to reach full brightness, you have a loose connection or an undersized power supply.

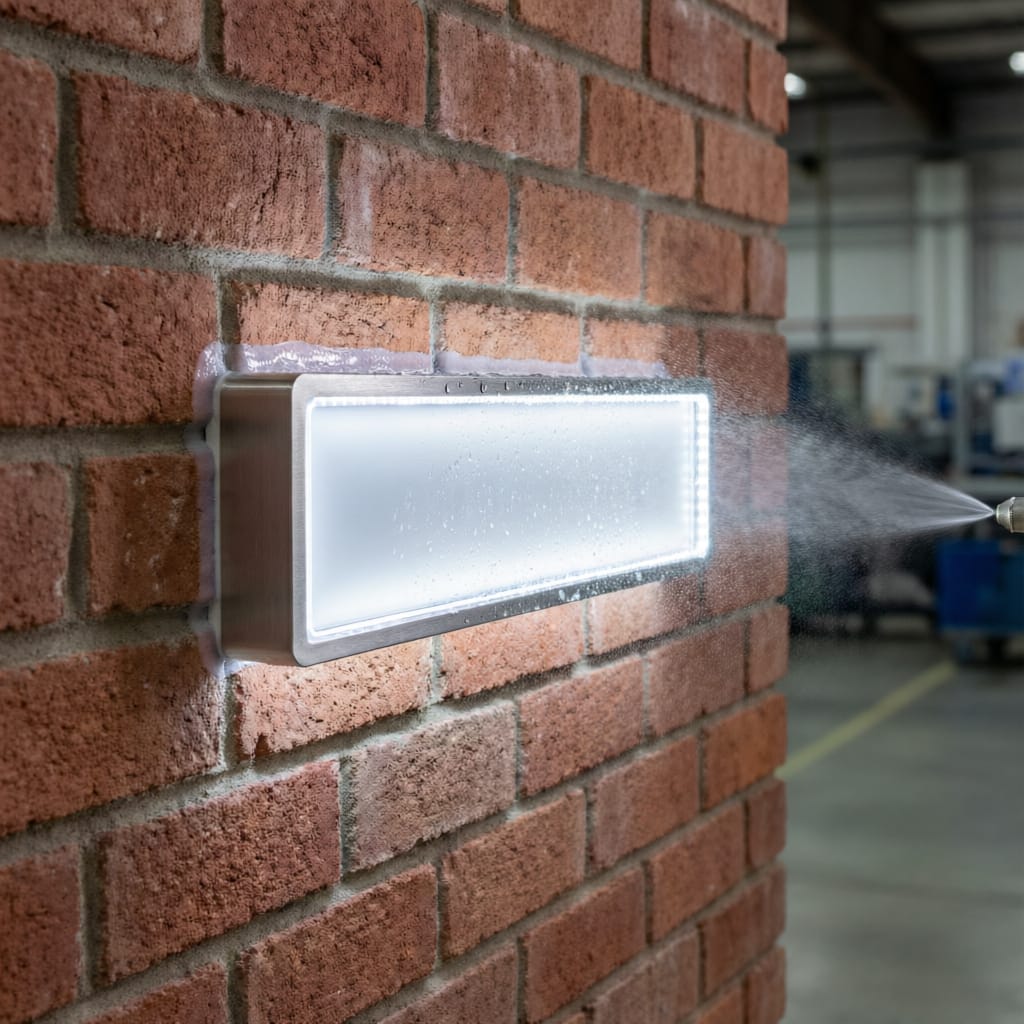

Test 3: Water test. Spray the sign with a hose from all angles for 5 minutes. Check inside each letter for moisture. If you see any, find the leak, reseal, and retest. This is your last chance before the client sees it.
Test 4: Thermal test. If the sign has been running for 30 minutes, check the temperature of the power supply. It should be warm, not hot. If it's too hot to touch for more than 5 seconds, it's undersized or in a poorly ventilated location. Move it or upgrade it.
1. What is the recommended spacing between LED modules to avoid hot spots and ensure even illumination?
For 3mm thick acrylic (the most common), space SMD 2835 modules 1.5-2 inches apart. For 5mm acrylic, you can go to 2.5-3 inches. Always test with a mockup first. The distance from the module to the acrylic face should be 0.75-1.5 inches. Too close, and you get hot spots. Too far, and you lose brightness. For single-sided channel letters, the module should be mounted on the back wall of the return. For double-sided (halo-lit), the module is mounted on the back plate, facing away from the viewer.
2. How do I calculate the correct power supply wattage for a multi-letter sign with varying letter sizes?
Calculate the total number of LED modules first. Each SMD 2835 module typically draws 0.1-0.3 amps at 12V (1.2-3.6W). Count all modules across all letters. Multiply by the per-module wattage. Then multiply by 1.25 for safety margin. Example: 200 modules at 2W each = 400W. 400 × 1.25 = 500W. Buy a 500W power supply. If letters vary significantly in size, use more modules per square foot for the larger letters to maintain brightness consistency.
3. What type of silicone or sealant is best for outdoor channel letters in extreme temperature ranges?
Use a neutral-cure silicone with a temperature range of -40°F to 200°F. Look for "100% silicone" on the label—no acrylic or polyurethane blends. Brands like Dow Corning 795 or GE Silicone II are industry standards. Do not use "bathroom" or "kitchen" silicone—they lack UV resistance. For coastal areas, use a silicone with a fungicide additive to prevent mold growth on the sealant bead.
4. Can I install channel letters on brick or stone without drilling into the facade?
No. There is no code-compliant way to mount a heavy outdoor sign on brick or stone without drilling. Surface-mount adhesives (VHB tape, construction adhesive) are not rated for the wind loads and thermal stresses of outdoor signs. You must drill into the brick or stone, use appropriate masonry anchors (stainless steel wedge anchors or epoxy-set threaded rods), and seal the holes with silicone. For historic facades where drilling is prohibited, use a standoff mounting system that attaches to the building's steel frame—but this requires structural engineering approval.
5. How do I handle voltage drop when the sign is located far from the power source?
Measure the distance from the power supply to the farthest LED module. If the run is over 20 feet, use a voltage drop calculator (free online) with your specific wire gauge. For a 12V system at 8 amps over 50 feet, you need 10 AWG wire minimum. Alternatively, use a 24V LED system instead of 12V—the higher voltage halves the current, which reduces voltage drop by 75% for the same wire gauge. Or move the power supply closer to the sign, even if it means mounting it on the roof or a nearby wall. A 10-foot run with 14 AWG wire is almost always fine. A 100-foot run with 18 AWG wire is a guaranteed failure.
One last piece of advice from the factory floor: Document everything. Take photos of the mounting rail before the letters go on. Label every wire. Leave a wiring diagram inside the power supply enclosure. Your future self—or the next installer—will thank you.
