UL 48 is the piece of paper that lets your sign pass inspection without the inspector giving you the side-eye. If you're building electric signs in the US, you need to understand it. If you're importing, you need to understand it even more. I've sat through enough UL audits to know that most people overpay for this certification or skip it entirely and then wonder why their shipment got held at customs.
UL 48 is the Underwriters Laboratories standard for electric signs. It covers channel letters, light boxes, cabinet signs, anything with internal wiring and LEDs. NEC Article 600 says your sign has to be listed and labeled by a recognized testing lab. UL is the big one. ETL is the knockoff that's actually 10-30% cheaper and just as accepted by most jurisdictions.
Here's what nobody tells you: most sign shops do not need their own UL 48 file. If you're buying from a factory that already has a UL listing, you can private label or multiple-list under their file. That means you get a label with your name on it without spending $4,000 to $15,000 and waiting 4 to 9 months. I've watched small shops blow their annual budget on a certification they could have borrowed.
But if you're the manufacturer — the one bending aluminum and wiring LED modules — you can't dodge it. Inspectors want to see your file number on the sign. They want to see that label. If you're importing from China, the factory should have UL 48. Most don't, even when they say they do. I'll get to that in a minute.
UL 48 applies to front-lit channel letters, backlit halo letters, flex neon signs, and pretty much any sign that plugs into a wall. If it has a transformer, driver, or LED module, it's under UL 48. Non-lit signs like 304 stainless steel letters without power don't need it. But the second you add LEDs, you're in UL territory.

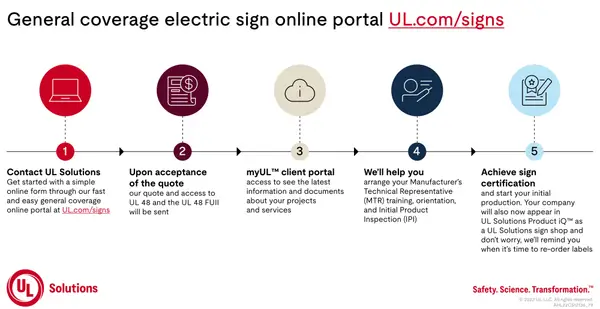

Look, I'll give you the straight version. Not the 40-page UL handbook. The real process for a manufacturer or importer.
First, you submit your product samples to UL. They'll want a complete sign — the metal shell, the acrylic face, the LED modules, the power supply, all of it. You pay an initial engineering fee. Then UL tears it apart. They test for fire resistance, electrical shock, rain ingress, and a dozen other things that make engineers happy. If it fails, you fix it and resubmit. That's more money.
Once your product passes, UL issues a file number. That file number goes on a label that gets stuck to every sign you build. You don't get to just print labels at home. UL sends you the labels or you buy them from an approved supplier. Then they come to your factory for quarterly audits. Four times a year, an inspector walks your floor and makes sure you're still building signs the way the test sample was built.
The ugly truth is that UL certification is not a one-time cost. It's a subscription. You pay initial testing, then annual fees, then audit fees, then label fees. I've seen small factories think they're done after the first check clears. They're not. The recurring costs can eat 10-15% of your margin on low-volume work.
For a factory like ours — 3,000 square meters, 50 workers — the process took about six months. We had to get our wiring procedures documented, our soldering station certified, and our power supplies sourced from UL-recognized vendors. Then we paid a UL engineer to fly out and watch us build signs for a day. That's the part nobody puts in the brochure.
UL 48 tests three main things: electrical safety, fire resistance, and weatherproofing. If you understand these, you'll pass easier and cheaper. If you ignore them, you'll fail and pay double.
Electrical safety: every live part has to be insulated or enclosed. That means no exposed wires, no open solder joints, no loose connections. Your LED modules need a proper driver with overload protection. The sign has to survive a 1,500-volt dielectric test without arcing. I've seen signs fail because a screw was too close to a power supply terminal.
Fire resistance: the acrylic face, the backing, the wiring insulation — all of it has to be flame-rated. UL will light a match to your materials. If the plastic drips flaming goo, you fail. That's why you don't use cheap domestic acrylic on UL-listed signs. Imported Mitsubishi or Degussa acrylic has the right flame rating and UV stability for 5-8 years. Chinese domestic acrylic yellows in 1-2 years and often can't pass the burn test.
Weatherproofing: UL 48 wants the sign sealed so water can't get to the electrical components. IP65 is the minimum — dust-tight and protected against water jets. That means the LED modules are potted or sealed, the wiring uses waterproof connectors, and the casing is sealed with neutral silicone. Here's the brutal honesty: IP65 does not mean your sign survives a Florida hurricane. It means water sprayed from a hose for 5 minutes. If you're installing on a Miami Beach high-rise with salt spray, you need backlit halo letters built with 316 stainless and IP66 or IP68 rated components. Pay the 20-30% premium for 316 or replace letters in three years.
One more thing: the sign's temperature rating matters. An LED sign in Phoenix with a black aluminum face can hit 160°F inside. UL tests for thermal stability. If your solder joints melt or the driver shuts down at 140°F, you fail. Use quality LED modules with thermal protection. Samsung, Osram, or Blueview modules last 5+ years in real conditions. Cheap modules die in 12-18 months. Check the solder joints — dull gray means the factory used bad lead-free solder. Shiny silver means it was done right. That's a factory-floor trick UL inspectors look for, too.
Here's the cost breakdown nobody gives you straight. Initial UL 48 testing runs $4,000 to $15,000 depending on how many product variations you submit. That's for one sign type. If you do front-lit, backlit, and light boxes, multiply that. ETL runs 10-30% cheaper for the same test. CE marking is completely different — that's a self-declaration for Europe and costs 20,000 to 50,000 RMB in China. Don't confuse CE with UL. CE won't get your sign past a US inspector.
Quarterly audits: UL charges roughly $800 to $1,200 per visit, plus travel expenses for the inspector. That's four times a year. If you're a small shop building 20 signs a month, that's $4,000+ annually just to keep the file active. You also pay for labels. They run 50 cents to $2 per label depending on volume. On a $100 sign, that's 2% right there before you even count the audit.
Materials list: you need to submit every material for approval. The UL engineer gives you a Recognized Component list. You can only use those suppliers. If you switch to a cheaper LED module without updating your file, you void the listing. I've seen this go wrong: a factory in Guangdong switched from Samsung LEDs to a no-name module to save $2 per letter. The UL inspector caught it during a routine audit. Their file got suspended for six months. Every shipment they had on the water got held at customs. That $2 savings cost them half a million.
For sign buyers: if you're importing electric signs, ask to see the UL file number. Not a certificate. The actual file number. Then go to UL's public database and check if it's current. If they say "we have UL" but the certificate is dated three years ago and the file shows inactive, run. Most Chinese factories will claim UL. Maybe 20% actually have it. The rest are banking on you not checking.
Total cost of ownership for UL 48: initial testing plus first year of audits and labels runs $8,000 to $20,000. That's if you pass on the first try. Most don't. Budget $12,000 to $25,000 realistically. If you're buying from a UL-listed factory with private label rights, you pay zero certification cost. You just pay the markup per label, usually $5 to $15 per sign. That's the smart play for 80% of sign shops.
Look, the fastest way to blow your UL budget is to submit a sign that's not production-ready. UL tests exactly what you send. If you send a hand-built prototype with perfect soldering and then mass-produce a sloppy version, the inspector will catch it. Build the sample on the same line, with the same jigs, same workers, same materials. Then don't change anything.
The most common failure I see is wiring. Loose connections, undersized wire, no strain relief. UL wants to see wire nuts or terminal blocks, not electrical tape. Solder joints need to be mechanically secure before soldering. This is basic stuff but I've watched factories fail three times on the same loose neutral wire. Fix the process, not the product.
Second pitfall: using non-UL-recognized power supplies. The driver is the heart of the sign. If it's not UL listed, the whole sign fails. Don't buy a $3 driver from a market stall. Buy Mean Well, Osram, or another UL-recognized brand. Yes, they cost $8-15 instead of $3. You're paying for a file number that UL already trusts. It speeds up your approval by weeks.
Here's what nobody tells you: you can accelerate approval by submitting multiple product families at once. If you do front-lit letters, backlit letters, and light boxes, bundle them. You'll pay more upfront but the engineering review overlaps. You save months. We did this in 2016 and cut our total timeline from nine months to five. The UL engineer told us most factories stagger submissions and end up paying double in audit travel costs.
Another accelerator: hire a UL consultant. Not a compliance officer. A former UL engineer who now does consulting. They cost $2,000 to $5,000 and they'll pre-test your sign before you submit. They know exactly what the lab will flag. We've used one for every product line since 2014. Best money we spend, because a failed UL test still costs the full testing fee. Paying $3,000 to avoid a $12,000 re-test is a no-brainer.
The ugly truth is that many US sign shops pay domestic fabricators $800 for a front-lit letter that we ship from China for $120. Same 304 stainless, same Samsung LEDs. The domestic guys have UL 48 and that's why they charge premium. But if you private label under a UL file from a factory like ours, you get the certification without the $20,000 sunk cost. You keep 65% of the margin and still pass inspection. That's the build-vs-buy decision most competitors won't tell you about.
You passed. Congratulations. Now the real work starts. UL inspectors are not your friends. They show up unannounced or with a week's notice depending on your contract. They'll walk the floor, check your materials inventory, and watch a build from start to finish. If you're not documenting everything, you'll get written up.
Here's your audit checklist. Keep a binder with every material certificate: acrylic flame rating, LED module UL number, power supply file, silicone brand. Mark each incoming shipment with a lot number and match it to the purchase order. UL wants traceability. If you can't prove that roll of acrylic is the approved material, they'll suspend your file. I've seen a factory lose two weeks of production because they couldn't find the certificate for their backing material.
Change management: any change to materials, process, or location requires a UL notification. New LED supplier? Notify UL. Moved the soldering station to the other side of the room? Notify UL. Sounds ridiculous but that's the rule. Failure to notify is the number one reason files get suspended. We learned that the hard way in 2018 when we switched silicone brands without telling UL. They found out during an audit and made us re-test. Two months of paperwork and a $4,000 fine. Now we notify for every single change.
Annual fees: expect to pay $2,000 to $5,000 per year just to keep the file active, plus audit fees. If you have multiple product families, each one has its own annual fee. We pay about $6,000 a year for three product lines. It's annoying but it's the cost of doing business. Don't let the file lapse. Reinstating a lapsed file costs more than five years of fees. I've seen shops close because they ignored the renewal notice and then couldn't afford the re-test.
For importers: you don't maintain the UL file if you're private labeling. The factory does. But you need to verify the label on every shipment. Make sure the file number matches the UL database and the label is applied before the sign leaves the factory. If the label falls off in transit, your customer's inspector will fail the sign. We double-stick the label and also include a spare in the crate. It costs 50 cents. Do that.
One more audit prep tip: keep a build log for every sign. Serial number, date, materials lot numbers, who wired it, test results. UL auditors love build logs. It shows you're not just slapping signs together. We use a simple spreadsheet. It's saved us more than once when an inspector asked "when was this letter built and which LED batch did you use?" If you can answer in 30 seconds, the audit goes smooth. If you stammer, you'll be there all day.
Do I need UL 48 if I buy pre-made signs from a UL-listed factory? No. You need to buy from a factory that has UL 48 and is willing to private label or multiple-list for you. The label goes on the sign under your company name. You don't own the file, but you benefit from it. If you're reselling as-is without modifying the sign, you're fine. If you modify the electrical, you need your own listing. Don't be the guy who swaps a power supply and then wonders why the inspector flagged it.
What's the difference between UL 48 and CE? Can I use CE in the US? No. CE is a European self-declaration. It means the manufacturer claims compliance. It does not get you past a US electrical inspector. UL is a third-party certification with audits. ETL is a third-party alternative that's 10-30% cheaper and accepted by most jurisdictions. But CE alone is worthless in the US. I've had importers argue this at customs. They lost.
How long does UL 48 take and can I rush it? Four to nine months is typical. If you hire a consultant and submit a clean sample, you might get it in three. If you fail a test, add two months and $5,000. There's no official rush service, but building a good relationship with your UL engineer helps. Send them coffee, not bribes. The timeline depends on how fast you respond to questions. We answer within 24 hours and we've gotten approvals in just over four months.
I'm a small sign shop building 10 letters a month. Do I need UL 48? Only if your local inspector requires it. Many do for commercial work. If you're only doing residential or non-permitted signs, maybe not. But if you're installing in a retail plaza or restaurant, they'll ask. Your cheapest option is to buy UL-listed letters from a factory and mark them up. Don't spend $15,000 to certify a shop that builds 120 signs a year. That math doesn't work. Buy from us or another listed factory, private label, and keep your margin.
