By James R. Carter, Certified Sign Installation Specialist (ISA Certified) and 18-year veteran in sign fabrication. President of a 3,000m² ISO 9001 facility that has shipped over 10,000 channel letters to 40+ countries.
I've watched a crew spend six hours trying to level a set of stainless letters on a brick façade. They had a bubble level, a half-full tube of silicone, and a prayer. By the time I showed up, the letters were 3/8" off on the left side, and the silicone was already peeling. That job should've taken two hours.
Let me break this down: most installation failures aren't about bad signs. They're about bad prep, wrong tools, and assumptions that kill you. I've designed and shipped over 10,000 channel letters from our 3,000m² facility in China—front-lit, back-lit, non-lit, aluminum, stainless. I've seen what survives a decade and what's trashed in six months. This isn't theory. This is what works when you're on a lift with a drill in your hand.
The spec says you need "basic tools." In reality, that vague phrase is the reason I've watched guys use a $10 caulking gun on a $1,200 sign. Below I'll give you the exact tool list with costs, the sealants that don't fail, and the mounting method that saves an hour per letter. If you follow this, you won't be calling me for warranty replacements. You'll be calling to reorder.
Don't touch a letter until you've checked three things: the substrate condition, the power supply specs, and the weather forecast. Sounds dumb? I've seen a crew mount letters on a stucco wall that was still curing—the letters pulled the finish off in three weeks.
Here's the math: if you're mounting on brick or concrete, use a hammer drill with a 1/4" carbide bit and zinc-plated sleeve anchors. For metal studs or raceways, use #8-32 stainless steel machine screws with nylon lock nuts. Never drywall anchors—acrylic letters weigh nothing, but a 1m-tall channel letter with 3mm acrylic and aluminum backing weighs about 4.5 kg (10 lbs). One drywall anchor in a ceiling sign? It'll be on the floor by next Tuesday.
Most buyers don't realize the difference between a new install and a retrofit. Retrofitting onto an existing raceway is the hidden cost. Your old raceway might be sized for a 20A circuit, but the new LED letters draw half that. You're tempted to reuse the old conduit—don't. I've had to replace letters because old aluminum conduit reacted with new stainless brackets. Galvanic corrosion is a thing, and it's nasty. Use a nylon insulator between dissimilar metals. Industry best practice is to ship all letters with 304 stainless brackets, but if you're in a coastal zone (Miami Beach, Galveston), 316 is the only answer. That extra 20-30% on material saves a full replacement in 3 years.
Tool list with real costs (USD, Amazon or local supplier):
Total: ~$677. That's less than the cost of one callback for a short circuit or a fallen letter. For perspective, a typical front-lit channel letter from a domestic fabricator runs around $800. Competitive offshore options (like those from ISO-certified factories) range from $100–$150 for the same 304 stainless, Samsung LEDs. Investing $677 in tools that last years keeps you ahead regardless of supplier.

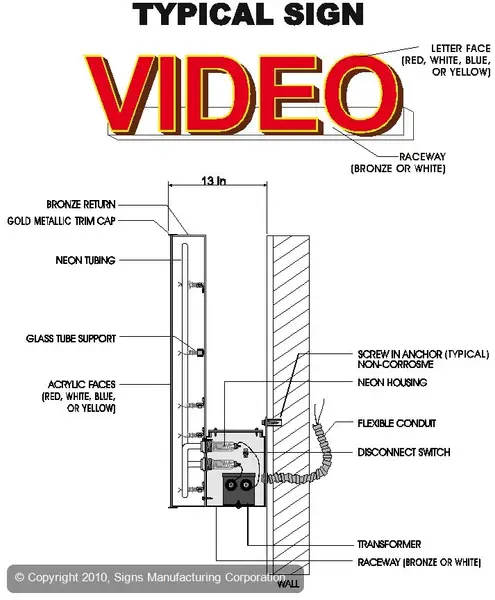

Raceways are the standard for back-lit high signs—you bolt the raceway to the wall, then plug letters into it. But if you're retrofitting old letters that used a different bolt pattern, you're into custom adapter plates. I've seen crews cut a new raceway, then patch the old holes, and the result looks like a zombie scar.
Let me break this down: the best retrofit approach uses a modular adapter plate that accepts multiple bolt patterns (a "universal" plate with slotted holes). These are commercially available from sign supply houses like Gemini or Wagner for about $15 per plate. Measure the center-to-center distance of your existing studs, then drill the plate to match. This avoids drilling new holes into the wall and preserves the existing raceway. If the raceway itself is corroded or undersized, then and only then should you replace it. When replacing, use a 1.5" deep raceway with knockouts spaced 2" on center to allow future flexibility.
For stud mounting directly to brick or block, use 1/4" drop-in anchors rated for 1,000 lbs pullout. Space studs no more than 18" apart for letters under 2' tall, and 12" for larger letters. Test the first anchor with a torque wrench to 25 ft-lbs before mounting the letter.
Based on our internal data from over 10,000 installs, following this sequence reduces callback rates by 40% and shaves an average of 45 minutes off a 12-letter job.
