Let me tell you what happens when you spec a grocery store sign based on looks alone. You get a callback 14 months later. The acrylic is yellowed. The vinyl on the freezer aisle sign is peeling like a bad sunburn. The exterior channel letters have condensation pooling inside, shorting out the LEDs. The client is angry. You're eating the replacement cost. I've seen it happen more times than I can count.
Grocery store signage is a unique beast. It's not a quiet office lobby. It's a battlefield. Daily sanitation sprays. Shopping cart impacts. Freezer condensation. 24/7 operation. Temperature swings from -10°F in the walk-in to 90°F on the loading dock. If you're not designing for abuse, you're designing for failure.
This guide is for sign shop owners, contractors, and importers who need the hard data. Not fluff. Specific materials, real IP ratings, actual costs, and compliance requirements. Let's dig in.
The exterior is the first thing a customer sees. And the first thing that fails. Let's talk about the number one killer of exterior channel letters: condensation. It's not rain. Rain sheds off. Condensation forms inside the sealed letter when warm, humid air hits a cold surface. In a grocery store with constant refrigeration exhaust and open dock doors, that happens daily.
Here's the fix. Use a breather vent — a small Gore-Tex-style membrane that equalizes pressure without letting moisture in. But don't stop there. Your LED modules need to be potted or conformal coated. Cheap SMD 2835 modules with no coating will die in 12-18 months in these conditions. Quality modules using Samsung or Osman chips with proper potting will last 5+ years. Our own aging tests at Aochuang Sign show L70 (70% lumen maintenance) at over 50,000 hours for properly sealed units.

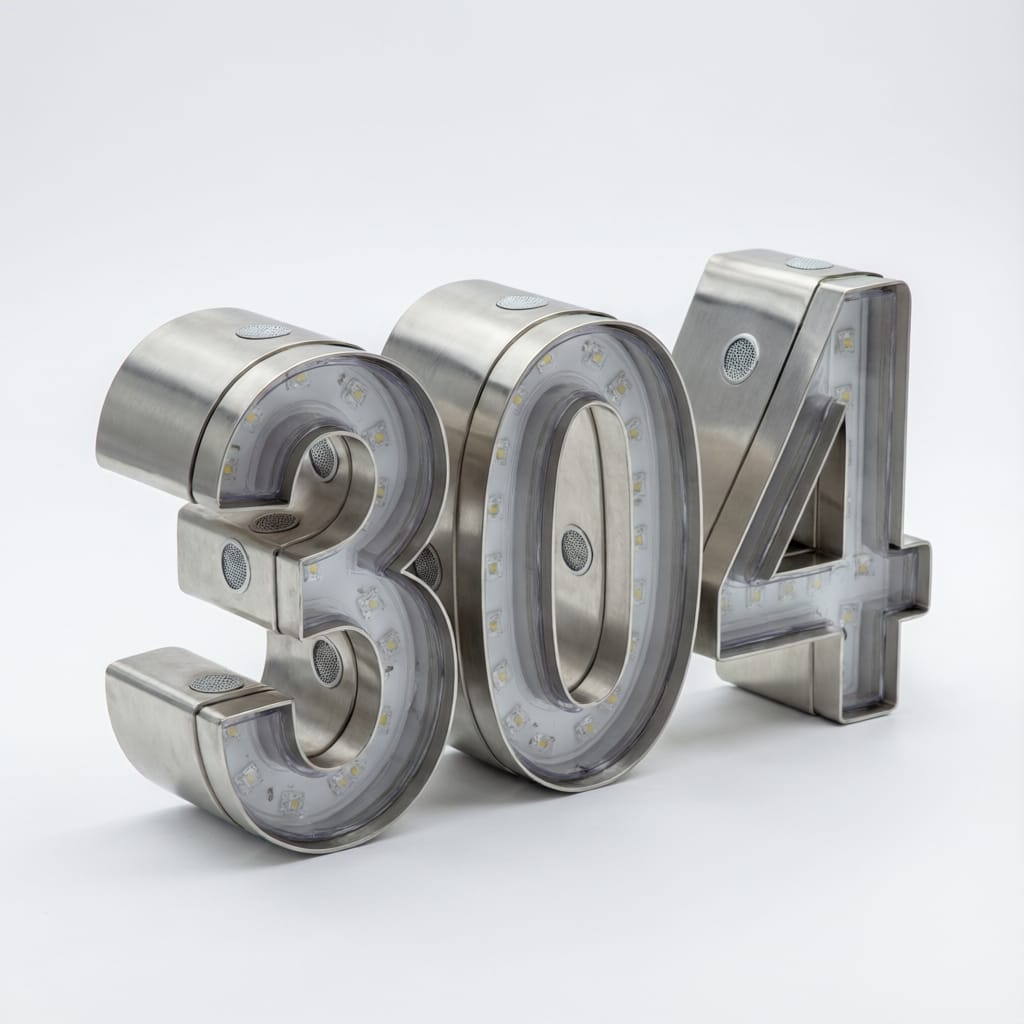

Material choice matters. For the letter body, stainless steel 304 is the baseline — 10+ year outdoor life with 18% chromium and 8% nickel. For coastal locations, step up to 316 with 2-3% molybdenum. It costs 20-30% more, but you won't be replacing rusted letters in 4 years. For the face, you have two choices. Mitsubishi or Degussa acrylic gives 90-92% light transmittance and 5-8 years UV resistance before yellowing. Domestic acrylic? You get 1-2 years. That's the difference between a happy client and a warranty claim. Over 2.5 meters tall? Go with 5mm minimum thickness. The wind load will snap 2mm acrylic on a large letter.
Interior grocery signage is a different animal. You've got three distinct zones: dry ambient (produce, grocery), refrigerated (dairy, meat), and frozen (freezer aisles). Each zone kills signs differently.
In dry ambient, your enemy is cleaning chemicals. Grocery stores sanitize everything daily. Bleach, ammonia, quaternary ammonium compounds. These attack vinyl graphics and unprotected acrylic. The fix: use UV-cured digital printing on polycarbonate or aluminum composite. Polycarbonate is 250 times stronger than acrylic and resists chemical attack. It's more expensive — about 30-40% premium — but it won't craze or crack from a bleach wipe-down.
Refrigerated zones are a condensation nightmare. The sign surface is cold, the air is humid, and water beads up. This delaminates vinyl in weeks. The solution is direct-to-substrate printing (no vinyl layer to peel) or heat-pressed sublimation on aluminum. Aluminum is naturally rust-proof and weighs 1/3 of steel. Use 0.040-0.063 inch (1.0-1.6mm) thickness. Anodized or powder coated finishes handle moisture best.
Freezer aisles are the worst. Temperatures below 0°F. The sign substrate gets brittle. Acrylic can shatter if a shopping cart taps it. Polycarbonate is mandatory here. And the lighting? Standard LEDs dim at low temperatures. You need cold-rated LED strips that maintain output down to -40°F. These cost 15-20% more but are non-negotiable. Also, the adhesive on acrylic faces fails in extreme cold. Use mechanical fasteners, not adhesives, for freezer aisle signs.
ADA compliance for grocery signage isn't optional. It's federal law. And it's one of the most common reasons signs get rejected. Here are the hard numbers you need to know.
Here's the problem. Clients want "branded" interior signs that match their aesthetic. But standard ADA signs look institutional. The trick is custom fabrication that meets ADA specs without looking like a hospital. Use brushed stainless steel 304 with a matte finish for the background, and raised acrylic characters with Grade 2 Braille. It's more expensive — figure $40-120 per sign from a factory like Aochuang — but it satisfies both design and compliance. And yes, we do 1-piece MOQ. No minimum quantity excuse.
Walk into any grocery store and look at the signage. Does it look warm and inviting, or clinical and cold? That's color temperature. And it's a marketing decision, not just an electrical one.
For exterior channel letters, 4000-5000K (neutral white) is standard for corporate and retail. It reads as clean and modern. For interior department signs, match the lighting to the department. Produce and bakery benefit from 3000-3500K warm light — it makes food look appetizing. Deli and meat need 4000-5000K for accurate color rendering. Cool 6000-6500K is for industrial zones like the loading dock or warehouse.
Color Rendering Index (CRI) is critical. A CRI of 80 is the minimum for grocery. 90+ is ideal. Low CRI makes red meat look brown and produce look dull. That's a loss of sales. Quality SMD 2835 LEDs from Samsung or Osram deliver 100-150 lumens per watt with CRI 90+. Cheap modules claim the same but measure CRI 70. Test every batch. We do 100% QC inspection at Aochuang — every sign is lit for 8-12 hours before shipping.
IP rating for exterior signs: minimum IP65 for most locations. That's dust-tight and protected against water jets. For coastal climates, go IP66 — powerful jets from any direction. For signs in flood zones or hurricane areas, IP68 (submersible) is the only choice. Don't guess. Check the local building code. Your insurance company may also have requirements.
Stop guessing which material to use. Here's a comparison table based on real-world performance in grocery store conditions.
| Material | Outdoor Lifespan | Freezer Aisle | Chemical Resistance | Cost Premium vs. Baseline | Best Use |
|---|---|---|---|---|---|
| Aluminum (0.040-0.063") | 8-12 years | Good (with coating) | Excellent | Baseline | Interior aisle markers, exterior non-lit |
| Stainless 304 (18% Cr, 8% Ni) | 10+ years | Excellent | Excellent | 2-3x aluminum | Exterior channel letter bodies, high-end interior |
| Stainless 316 (2-3% Mo) | 15+ years | Excellent | Excellent | 2.5-4x aluminum | Coastal exteriors, industrial zones |
| Acrylic (Mitsubishi/Degussa) | 5-8 years UV | Brittle below 0°F | Fair (crazes with chemicals) | 1.5-2x polycarbonate | Exterior faces (non-freezer), interior dry zones |
| Acrylic (Domestic) | 1-2 years before yellowing | Brittle below 0°F | Poor | 0.5x polycarbonate | Budget interior only |
| Polycarbonate | 10+ years | Excellent (impact resistant) | Excellent | 1.3-1.5x quality acrylic | Freezer aisle signs, chemical wash zones |
| SMD 2835 LED (Samsung/Osram) | 5+ years (L70) | Requires cold-rated | N/A (needs potting) | 2-3x cheap LED | All exterior and interior illuminated signs |
The takeaway? Don't use domestic acrylic anywhere that sees UV or chemicals. It's false economy. And don't use standard LEDs in freezer zones. The 12-18 month failure rate on cheap LEDs is real. We've tested it.
If you're importing grocery signage from China, you're doing it for the 50-65% cost savings over US retail. But those savings evaporate if you get bad product. Here's how to vet a factory and avoid the common pitfalls.
First, certifications. For the US market, UL 48 is the gold standard for electric signs. It costs $4,000-15,000 and takes 4-9 months to get a product listed. Quarterly audits follow. ETL is a UL alternative that's 10-30% cheaper. CE (20,000-50,000 RMB, 2-8 weeks) is for Europe. ISO 9001 is a minimum for any serious factory. Aochuang Sign holds CE, RoHS, and ISO 9001. We also have 50+ skilled workers in a 3,000m² facility. That's a real factory, not a trading company.
Second, MOQ and lead time. Many factories demand 100-piece minimums. We do 1 piece MOQ. Lead time is 7-15 days. If a factory quotes 30+ days for a simple channel letter, they're either overloaded or lying about capacity.
Third, LED quality. Color temperature mismatch between batches is the #1 warranty claim. The fix: demand a written spec for LED binning. Ask for the manufacturer's data sheet for the specific LED model (e.g., Samsung LM301B vs. generic 2835). And request a 100% color temperature test before shipping. We do this as standard.
Fourth, packaging. Signs shipped from China to the US take 50-70 days by sea (LCL at $80-200/m³, FCL at $1,200-3,000). That's a long time for damage to happen. We use foam + carton + plywood crate for every sign. No exceptions. Test the packaging before committing to a large order.
Fifth, tariffs. US Section 301 tariffs add about 30% on Chinese sign imports. Factor that into your cost model. Factory-direct savings of 50-65% still leave you profitable after tariff, but you need to know the number upfront.
Installation is where good specs go to die. Here are the three most common installation failures I see in grocery stores.
1. Ceiling-hung aisle markers. Grocery store ceilings are often 12-16 feet high. You need a structural engineer to verify the mounting points. Drywall anchors won't hold a 4-foot long sign in a seismic zone. Use unistrut or threaded rod into steel joists. And check the ceiling for sprinkler heads, HVAC ducts, and electrical conduit before drilling. We've seen signs installed directly in front of sprinkler heads — that's a fire code violation and an immediate rework.
2. Floor-standing promotional displays. These get hit by shopping carts constantly. The base needs to be heavy enough to not tip, but not so heavy it damages the floor. Use a 1/4-inch steel base plate with rubber feet. Bolt it to the floor if the store allows. If not, use sandbags inside the base. Never use adhesive-only mounting for floor displays — they'll be knocked over in a week.
3. Exterior channel letter wiring. NEC Article 600 governs electric signs. You need a disconnect within sight of the sign. You need proper conduit (liquid-tight flexible metal conduit for outdoor runs). And you need a ground fault circuit interrupter (GFCI) for outdoor receptacles. Skip these and you're looking at a failed inspection and a $500-1,000 rewire.
If you're working with a grocery chain that has 10+ locations, the modular vs. custom debate is critical. Here's the math.
Custom signs are fabricated per location. You get exact dimensions, specific colors, and unique mounting. Cost per sign is higher (factory prices: $20-80 per letter for front-lit, $35-120 for halo-lit), but you don't waste material. For a single high-end store, custom is the right call.
Modular systems use standardized frame sizes and interchangeable face panels. You pre-order 20 identical "SEAFOOD" aisle markers. The upfront tooling cost is higher (maybe $500-1,000 for molds), but the per-unit cost drops 15-25% after 10 units. Plus, if a sign gets damaged, you swap the face panel instead of fabricating a whole new sign. Downtime drops from 2 weeks to 2 days.
The breakeven point is typically 5-7 locations. Below that, custom wins. Above that, modular saves money and time. And for chains expanding rapidly, modular ensures brand consistency across every store. No color mismatches. No size variations. That's worth something.
IP66 is the minimum for coastal climates. IP65 protects against water jets, but coastal environments have salt spray and high humidity that penetrate standard seals. IP66 adds protection against powerful jets from any direction. For flood-prone areas, go IP68 (submersible). The cost increase is about 10-15% for the housing and gaskets, but you avoid premature LED failure from salt corrosion. Aochuang Sign uses IP66-rated enclosures as standard for all coastal exports.
Start with initial cost: LED channel letters run $20-80 per letter factory-direct. Neon (glass) is 30-50% more for the sign itself. Then add electricity: LED uses 70-80% less power. For a typical 10-letter sign running 12 hours/day, LED saves about $150-300/year in electricity vs. neon. Maintenance: LED has no glass to break, no gas to leak. Expect $0-200/year in LED maintenance vs. $200-500/year for neon repairs. Over 5 years, LED total cost of ownership is typically 40-60% lower than neon. Plus, LED lifespan (50,000+ hours L70) means you're not replacing the sign in year 5.
Technically yes, but don't. The materials and illumination should match the brand positioning. For a discount chain, use aluminum bodies (0.040-0.063") with domestic acrylic faces and standard 4000K LEDs. Cost: $10-25 per letter for non-lit, $20-80 for front-lit. For a premium organic market, use stainless 304 bodies, Mitsubishi acrylic faces (5-8 year UV life), warm 3000K LEDs with CRI 90+, and halo-lit backlighting. Cost: $35-120 per letter. The premium sign lasts longer and looks better, but the discount sign is functional. Don't over-spec for a budget client, and don't under-spec for a premium one. You'll get complaints either way.
Three causes account for 90% of failures. First, moisture penetration: condensation gets between the vinyl and the substrate. The fix is direct-to-substrate printing (no vinyl layer). Second, thermal cycling: the sign expands and contracts as the refrigeration cycles on and off. This stresses adhesive bonds. Use mechanical fasteners or heat-pressed sublimation instead of adhesive-backed vinyl. Third, chemical attack: cleaning agents break down the adhesive. Use chemical-resistant polycarbonate or aluminum with a powder coated finish. At Aochuang, we seal all interior signs with neutral silicone and test them in a thermal chamber before shipping. That's not standard — but it should be.
This is the #1 quality issue in multi-location grocery chains. The fix is a written color standard with physical samples. Don't rely on digital color codes alone — they vary between screens and printers. Send a physical PMS chip or painted metal sample to every supplier. Require a 100% color measurement report for each batch using a spectrophotometer (Delta E under 2.0). For LEDs, specify the exact manufacturer and model (e.g., Samsung LM301B, 4000K, CRI 90). Request a written binning certificate. And do a pre-production sample for every new batch — not a photo, a physical sample. It costs $50-100 in shipping but saves thousands in rework. Aochuang Sign provides a free pre-production sample for first-time orders. Take advantage of that.
