I've pulled apart hundreds of illuminated channel letters that crapped out before their first birthday. The cause? Usually something stupid – underspecified LEDs, wrong stainless grade, or a trim cap that trapped water. You're reading this because you don't want to be that guy ripping down a sign two years in. Good. Let me show you what actually works.
Here's the thing – most commercial sign buyers think they need to spec a UL 48 listing and throw Samsung modules at every job. But they're burning money. You can build a sign that lasts 10+ years for 40% less if you understand the trade-offs. I've designed thousands of channel letters in our 3,000m² shop in Lu'an. We export to 21 countries. Saw every mistake imaginable. Let's fix yours.
Let me break this down: pixelation happens when your LED spacing exceeds the viewing distance threshold. For a standard SMD 2835 module (100–150 lm/W), you need center-to-center spacing of 25–40mm for letters under 2m tall. Go tighter than 20mm and you're just heating the acrylic – no visible benefit.
Most buyers don't realize that LED density is a function of both letter depth and stroke width. A 150mm stroke width letter with a 50mm deep return needs modules every 30mm to avoid hot spots. But if you switch to a 100mm deep return, you can space them 45mm apart and still get even illumination. That's 30% fewer modules. At $1.20 per module (Samsung 2835), you save $36 on a 100-module letter. Not huge. But do that across 20 letters and you've covered your shipping costs.
Here's the brutal truth: cheap LED modules with dull gray solder joints won't last 18 months. I've tested hundreds. The shiny silver joints (proper lead-free SAC305) are the only ones I'd trust for a commercial sign. Our aging test rig runs 8–12 hours at 50°C before any batch ships. If I can't see bright white light and uniform spread after that, the whole batch gets rejected.
For RGB applications, use SMD 5050. For maximum punch on a highway sign, SMD 5730 (~60 lm/chip) is your friend – but only if the letter is deeper than 80mm, or you'll get glare that defeats the purpose. One quick trick: test your layout with a flashlight in a dark room. If the beam hits the back of the acrylic at an angle and creates a hot spot, move the module closer to the face or increase the letter depth.

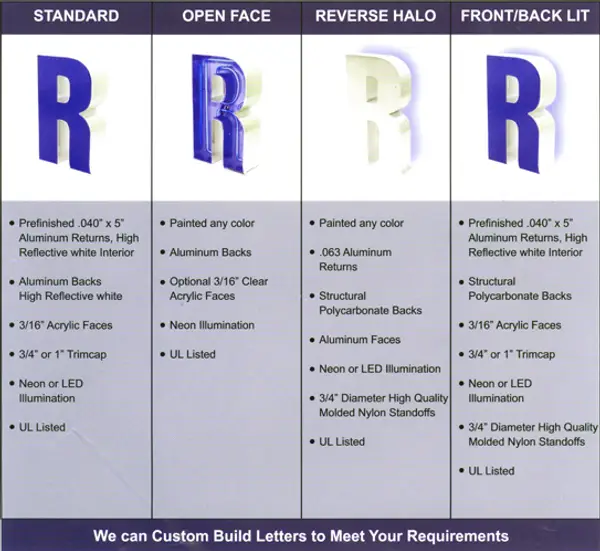

Most buyers don't realize that reverse-lit (halo) letters require at least 100mm aluminum depth – and 120mm is better. Why? Because the light has to bounce off the mounting surface and spread behind the letter. If your return is too shallow, you get a sharp ring of light instead of a soft halo. Our standard spec for halo letters is a 120mm deep 6061-T6 aluminum return, 2mm thick, with a 3mm acrylic face that's CNC-cut to fit the back opening.
Here's the math: a front-lit channel letter with 304 stainless returns (1.5mm, brushed #4 finish) costs us about $35 per letter at factory price. Same letter in halo configuration – $75. That's because halo needs a closed back, a different trim cap, and twice the LED modules (one row at the face, one row at the back). If you want a combination front+halo? Add another 30% for the dual LED rows and a deeper letter (150mm minimum).
Honest advice from someone who's done this for 15 years: unless your client is putting the sign on a dark storefront where the halo effect is visible from 50m, skip halo. It adds 50–70% to the sign cost and the failure rate is higher because water always finds the back seal. I've watched sign shops charge $800 for a single halo letter, ship it, and have the customer call back within a year because the gasket failed. Our factory warranty: 2 years on LEDs, 1 year on power supply. That's fine. But if you're selling halo, make sure the installer uses neutral silicone – not the acidic stuff. Ask me how I learned that.
The spec says stainless 304 for most outdoor signs. In reality, that's overkill for a covered strip mall in Phoenix. 304 contains 18% chromium and 8% nickel – that's what gives it a 10+ year life. But if the sign is under a canopy with no direct rain, you can use powder-coated aluminum (1.0mm) and save 40% on material. Aluminum naturally rust-proofs with a thin oxide layer. Anodize it for extra protection – we see 8–12 years outdoor life from anodized aluminum signs.
But here's where rookies get burned: coastal environments. If your sign is within 2km of salt water, 304 stainless will pit after 3 years. You need 316 – the marine grade with 2–3% molybdenum. It costs 20–30% more. But a 316 letter in Miami Beach will still look new after 5 years, while 304 starts showing rust freckles by year two. Don't skimp. I've seen a $15,000 sign rusting within 18 months because the designer spec'd 304 for a boardwalk restaurant. The client sued. Save yourself the headache.
Acrylic face? Use 3mm for letters up to 1.5m. For anything over 2m tall, jump to 5mm. The 90–92% light transmittance of Mitsubishi or Degussa acrylic lasts 5–8 years before yellowing. Domestic acrylic? 1–2 years. That's not a myth – it's the difference between UV stabilizers in the factory and recycled scrap. We only buy from Japanese or German suppliers. The 15% cost premium is cheap compared to replacing yellow faces every 18 months.
One more thing: trim cap. The common mistake is using cheap ABS plastic. It warps in direct sun. Go with aluminum trim cap – either anodized or painted to match. It costs $2 per linear foot more. Worth it.
CE marking costs 20,000–50,000 RMB and takes 2–8 weeks. Most factories will say they have it. Ask to see the certificate with today's date. Watch them sweat. The real CE mark requires annual audits. If they can't show you the latest certificate, they're probably just stamping "CE" on the box. Not legal for EU sales.
UL 48 is the gold standard for US signs. But it's expensive: $4,000–15,000 for certification, plus quarterly audits. Most Chinese factories don't have it. They'll offer ETL instead – it's a UL alternative that costs 10–30% less. ETL is accepted by most US code inspectors. We've passed ETL for multiple projects. The test includes a 50% overload test on the power supply and a humidity cycle. If your sign passes that, it'll survive most commercial use.
IP65 sounds impressive. It means dust-tight and water jets from any direction. It does NOT mean your sign survives a Florida hurricane. For that, you need IP66 (powerful jets) or IP68 (submersible). Even then, the real protection comes from the sealant and gasket, not the LED module rating. We use neutral silicone on every joint, then run an 8-hour water spray test at 100 psi. If a single drop gets inside, the letter gets rebuilt. That's not in any certification – it's just good practice.
NEC Article 600 for US electrical requires that sign wiring be at least 14 AWG, with strain relief at every junction. Many import signs skip this – they use 18 AWG wire inside the letter. We use 16 AWG as standard, with silicone-sheathed cable. Ask your supplier for a photo of the internal wiring before shipment. If it looks like a rat's nest, reject it.
Our production takes 7–15 days. Here's where the magic happens – but also where things can go wrong if you're not watching. Step one: design confirmation. We use CAM software to nest parts on a 4x8 sheet. One bad file and you've wasted $200 of stainless. This isn't complicated, but it's where I see the most mistakes from overseas suppliers.
Laser cutting holds ±0.1mm tolerance. That's tighter than most sign shops need, but it matters when you're welding multiple returns together. If the gap is 0.5mm, the TIG weld will show. Bending and welding takes 1–2 days – we use jigs for repeatable angles. Grinding and polishing adds 1–2 days for a mirror finish. Acrylic face CNC routing is a 1-day job, but if the geometry has sharp corners less than 3mm radius, the tool will chatter. Design with at least 3mm inside corners.
LED assembly: we pre-wire all modules on a template, then secure with thermal tape (not glue) for better heat dissipation. Sealing with neutral silicone – not acidic, which corrodes aluminum. Then an 8–12 hour aging test at full power. Every letter is 100% inspected: light output, color temperature consistency, solder joint appearance, seal integrity. Finally, export packaging – foam wrap, then a carton, then a 9mm plywood crate. For LCL sea freight, that crate gets handled 6–8 times between our dock and yours. Every touch is a chance for damage. That's not in the brochure.
Let me break this down: you want a front-lit stainless steel letter, 300mm
